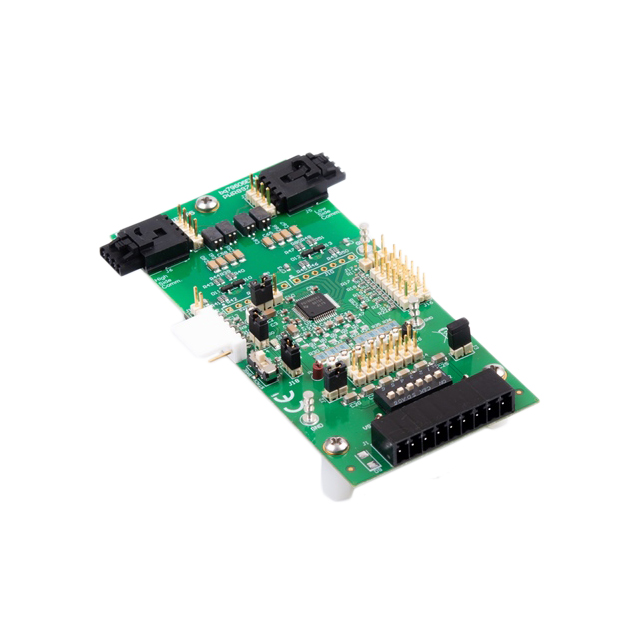

BQ79606EVM-897

Active

Texas Instruments

16 S PRECISION BATTERY MONITOR BALANCER INTEGRATED PROTECTOR EVALUATION MODULE

Search across all available documentation for this part.

Active

Texas Instruments

16 S PRECISION BATTERY MONITOR BALANCER INTEGRATED PROTECTOR EVALUATION MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.80

General part information

BQ79606A-Q1 - Battery Monitor Power Management Evaluation Board

Technical documentation and resources

Specification	BQ79606EVM-897	BQ79606 Series

Battery Chemistry	-	Lithium Ion
Contents	Board(s)	Board(s)
Fault Protection	-	Over Temperature, Over/Under Voltage
Function	Battery Monitor	Battery Monitor
Grade	-	Automotive
Interface	-	SPI, UART
Mounting Type	-	Surface Mount
Number of Cells	-	6
Number of Cells	-	3
Operating Temperature	-	105 °C
Operating Temperature	-	-40 °C
Package / Case	-	48-PowerTQFP
Qualification	-	AEC-Q100
Secondary Attributes	On-Board LEDs, Test Points	On-Board LEDs, Test Points
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	48-HTQFP (7x7)
Type	Power Management	Power Management

Part	Supplied Contents	Contents	Type	Secondary Attributes	Function	Grade	Qualification	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Cells [Max] [custom]	Number of Cells [Min] [custom]	Interface	Fault Protection	Package / Case	Battery Chemistry
Texas Instruments BQ79606EVM-897	Board(s)	Board(s)	Power Management	On-Board LEDs, Test Points	Battery Monitor
Texas Instruments BQ79606APHPRQ1					Battery Monitor	Automotive	AEC-Q100	Surface Mount	105 °C	-40 °C	48-HTQFP (7x7)	6	3	SPI, UART	Over Temperature, Over/Under Voltage	48-PowerTQFP	Lithium Ion
Texas Instruments BQ79606APHPTQ1					Battery Monitor	Automotive	AEC-Q100	Surface Mount	105 °C	-40 °C	48-HTQFP (7x7)	6	3	SPI, UART	Over Temperature, Over/Under Voltage	48-PowerTQFP	Lithium Ion
