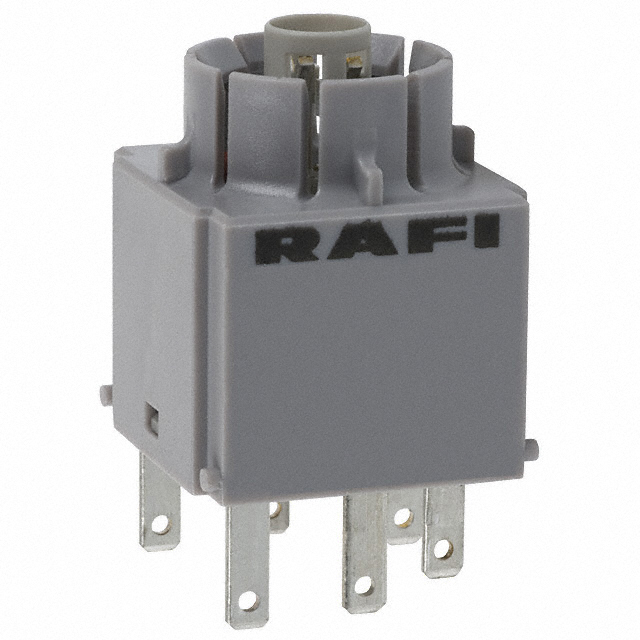

1.20.123.001/0000

Active

RAFI USA

CONTACT BLOCK SPST 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK SPST 3A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 18.00

General part information

Configurable Contact Block SPST-NO + SPST-NC 3A @ 120VAC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.20.123.001/0000	1.20123 Series

(Select First, Then Apply Filters) Compatible Series	Rafix 16	Rafix 16
Circuit	SPST-NO + SPST-NC	DPST-NC, SPST-NO, SPST-NO + SPST-NC, DPST-NO, SPST-NC
Contact Rating @ Voltage	3 A, 120 VAC	3 - 120 A
Contact Rating @ Voltage	-	35 VAC/DC
Contact Rating @ Voltage	-	0.25 A
Requires	Switch Body	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm), Screw Terminal

CONTACT BLOCK DPST-NC 0.25A 35V

Part	Circuit	Termination Style	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Requires	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage
RAFI USA 1.20.123.014/0000	DPST-NC	Quick Connect - 0.110" (2.8mm)	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.921/0000	DPST-NC, SPST-NO	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.121/0000	SPST-NO + SPST-NC	Screw Terminal			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.004/0000	DPST-NC	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.023/0000	SPST-NO	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.011/0000	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.111/0000	SPST-NO + SPST-NC	Screw Terminal	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.001/0000	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.135/0000	DPST-NC	Screw Terminal	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.104/0000	DPST-NC	Screw Terminal			Switch Body	Rafix 16	3 A, 120 VAC
