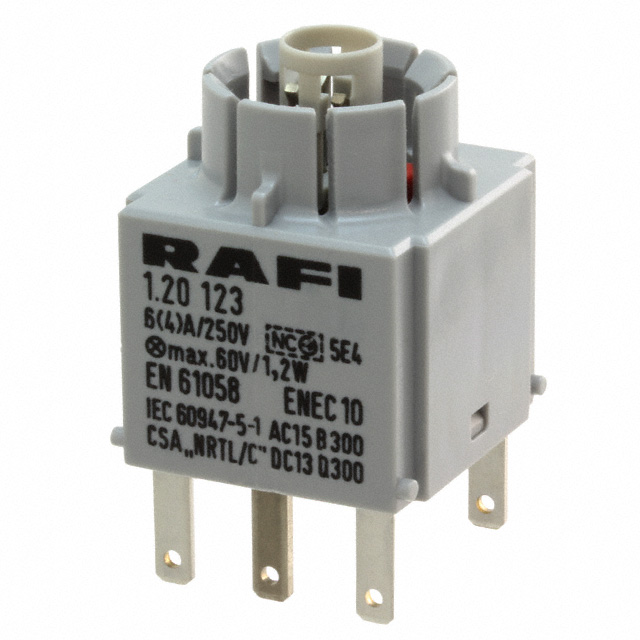

1.20.123.004/0000

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 3A @ 120VAC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.20.123.004/0000	1.20123 Series

(Select First, Then Apply Filters) Compatible Series	Rafix 16	Rafix 16
Circuit	DPST-NC	DPST-NC, SPST-NO, SPST-NO + SPST-NC, DPST-NO, SPST-NC
Contact Rating @ Voltage	3 A, 120 VAC	3 - 120 A
Contact Rating @ Voltage	-	35 VAC/DC
Contact Rating @ Voltage	-	0.25 A
Requires	Switch Body	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm), Screw Terminal

CONTACT BLOCK DPST-NC 0.25A 35V

Part	Circuit	Termination Style	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Requires	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage
RAFI USA 1.20.123.014/0000	DPST-NC	Quick Connect - 0.110" (2.8mm)	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.921/0000	DPST-NC, SPST-NO	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.121/0000	SPST-NO + SPST-NC	Screw Terminal			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.004/0000	DPST-NC	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.023/0000	SPST-NO	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.011/0000	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.111/0000	SPST-NO + SPST-NC	Screw Terminal	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.001/0000	SPST-NO + SPST-NC	Quick Connect - 0.110" (2.8mm)			Switch Body	Rafix 16	3 A, 120 VAC
RAFI USA 1.20.123.135/0000	DPST-NC	Screw Terminal	35 VAC/DC	0.25 A	Switch Body	Rafix 16
RAFI USA 1.20.123.104/0000	DPST-NC	Screw Terminal			Switch Body	Rafix 16	3 A, 120 VAC
