7-1415538-5

Obsolete

TE Connectivity Potter & Brumfield Relays

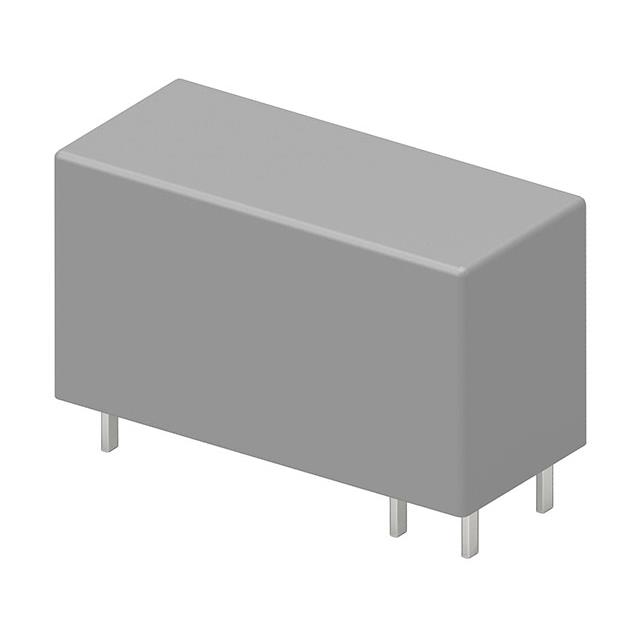

RELAY GEN PURPOSE SPST 16A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7-1415538-5

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7-1415538-5

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	16.7 mA
Coil Insulation	Class F
Coil Resistance	1440 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching	6400 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

RT3340 Series

Part	Release Time	Coil Voltage	Contact Material	Coil Resistance	Seal Rating	Contact Rating (Current)	Mounting Type	Relay Type	Coil Current	Approval Agency	Contact Form	Must Release Voltage	Coil Type	Termination Style	Must Operate Voltage	Load - Max Switching	Coil Insulation	Operate Time	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity Potter & Brumfield Relays RT334048	6 ms	48 VDC	Silver Nickel (AgNi)	5.52 kOhms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	14.2 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	4.8 VDC	Non Latching	PC Pin	33.6 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays RT334024	6 ms	24 VDC	Silver Nickel (AgNi)	1440 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	14.2 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	2.4 VDC	Non Latching	PC Pin	16.8 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays 1-1415527-1	6 ms	12 VDC	Silver Nickel (AgNi)	360 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	33.3 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	1.2 VDC	Non Latching	PC Pin	8.4 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays RT334012F	6 ms	12 VDC	Silver Nickel (AgNi)	360 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	33.3 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	1.2 VDC	Non Latching	PC Pin	8.4 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays 7-1415538-5	6 ms	24 VDC	Silver Nickel (AgNi)	1440 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	16.7 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	2.4 VDC	Non Latching	PC Pin	16.8 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays 1415539-3	6 ms		Silver Nickel (AgNi)	90 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	66.7 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	0.6 VDC	Non Latching	PC Pin	4.2 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays RT334012	6 ms	12 VDC	Silver Nickel (AgNi)	360 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	14.2 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	1.2 VDC	Non Latching	PC Pin	8.4 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays RT334005	6 ms	5 VDC	Silver Nickel (AgNi)	62 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	80 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	0.5 VDC	Non Latching	PC Pin	3.5 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C
TE Connectivity Potter & Brumfield Relays RT334018	6 ms	18 VDC	Silver Nickel (AgNi)	770 Ohms	Sealed - Flux Protection	16 A	Through Hole	General Purpose	14.2 mA	CQC CSA cURus VDE	SPST-NO (1 Form A)	1.8 VDC	Non Latching	PC Pin	12.6 VDC	6400 VA	Class F	8 ms	400 VAC	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RT3340 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
