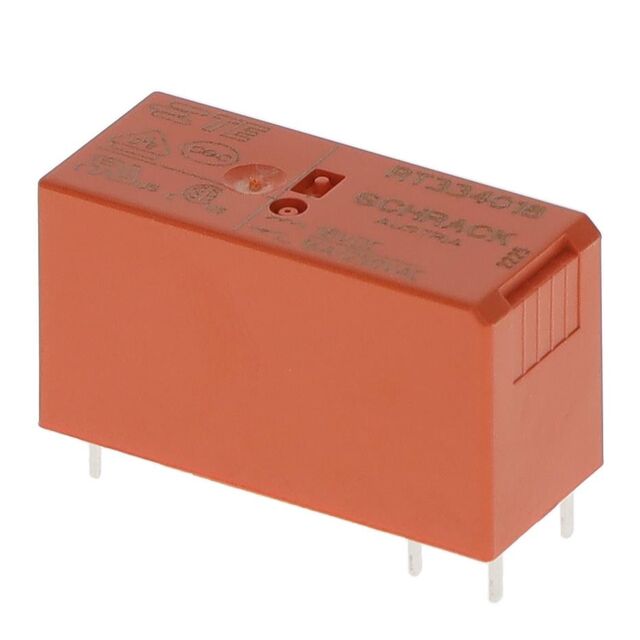

RT334018
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 18V
Deep-Dive with AI
Search across all available documentation for this part.
RT334018
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 16A 18V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT334018 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 14.2 mA |
| Coil Insulation | Class F |
| Coil Resistance | 770 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 18 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 12.6 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 6 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.31 | |
| 20 | $ 4.04 | |||
| 40 | $ 3.42 | |||
| 100 | $ 3.24 | |||
| 260 | $ 2.88 | |||
| 500 | $ 2.70 | |||
| 1000 | $ 2.52 | |||
Description
General part information
RT3340 Series
General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
