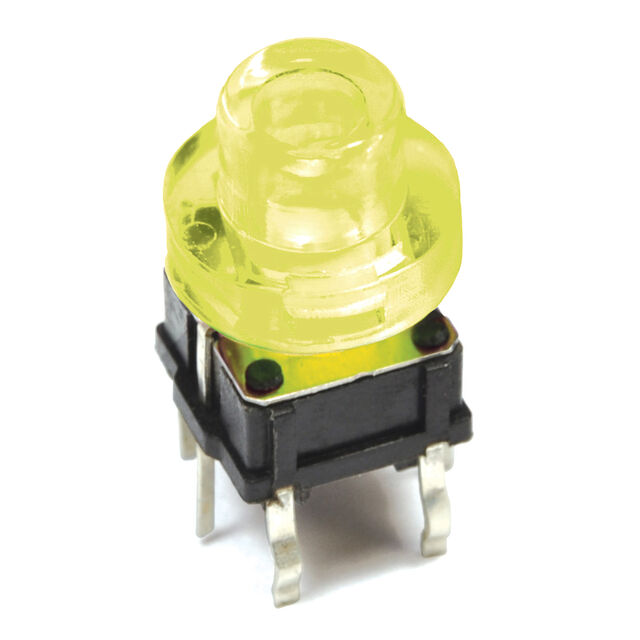

TL1265YQSCLR

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL1265YQSCLR

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1265YQSCLR

Actuator Height off PCB, Vertical [z]	12 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Clear Cap
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	2.3 VDC
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	7 mm
Outline [y]	6.8 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

TL1265 Series

Part	Termination Style	Outline [y]	Outline [x]	Mechanical Life	Circuit	Contact Rating @ Voltage	Actuator Type	Mounting Type	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Illumination Type, Color	Actuator Height off PCB, Vertical [z]	Illumination	Features	Switch Function	Switch Travel	Actuator Height off PCB, Vertical
E-Switch TL1265GQSCLR	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole	2.3 VDC	-20 C	70 °C	Top Actuated	Green LED	12 mm	Illuminated	Clear Cap	Off-Mom	0.2 mm
E-Switch TL1265AQRGRN	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Green Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265AQRYEL	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Yellow Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265AQRGRY	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Gray Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265YQSCLR	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole	2.3 VDC	-20 C	70 °C	Top Actuated	LED Yellow	12 mm	Illuminated	Clear Cap	Off-Mom	0.2 mm
E-Switch TL1265AQRRED	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Red Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265AQSBLK	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated		12 mm	Non-Illuminated	Black Cap	Off-Mom	0.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.53
		10	$ 3.39
		100	$ 2.68
		1000	$ 2.09
		5000	$ 1.82

Description

General part information

TL1265 Series

Tactile Switch SPST-NO Top Actuated Through Hole
