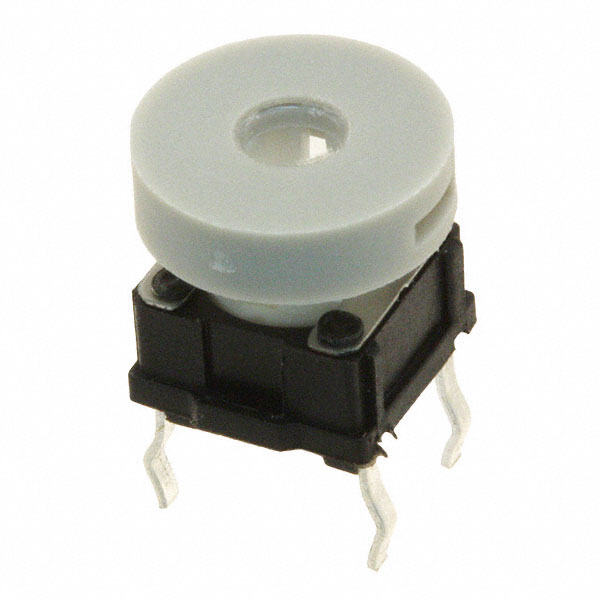

TL1265AQRGRY

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

TL1265AQRGRY

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL1265AQRGRY

Actuator Height off PCB, Vertical	8.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Gray Cap
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	7 mm
Outline [y]	6.8 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	PC Pin

TL1265 Series

Part	Termination Style	Outline [y]	Outline [x]	Mechanical Life	Circuit	Contact Rating @ Voltage	Actuator Type	Mounting Type	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Illumination Type, Color	Actuator Height off PCB, Vertical [z]	Illumination	Features	Switch Function	Switch Travel	Actuator Height off PCB, Vertical
E-Switch TL1265GQSCLR	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole	2.3 VDC	-20 C	70 °C	Top Actuated	Green LED	12 mm	Illuminated	Clear Cap	Off-Mom	0.2 mm
E-Switch TL1265AQRGRN	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Green Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265AQRYEL	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Yellow Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265AQRGRY	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Gray Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265YQSCLR	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole	2.3 VDC	-20 C	70 °C	Top Actuated	LED Yellow	12 mm	Illuminated	Clear Cap	Off-Mom	0.2 mm
E-Switch TL1265AQRRED	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated			Non-Illuminated	Red Cap	Off-Mom	0.2 mm	8.5 mm
E-Switch TL1265AQSBLK	PC Pin	6.8 mm	7 mm	500000 Cycles	SPST-NO	0.05 A 12 VDC	Round Button	Through Hole		-20 C	70 °C	Top Actuated		12 mm	Non-Illuminated	Black Cap	Off-Mom	0.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86
		10	$ 2.32
		25	$ 2.13
		100	$ 1.88
		250	$ 1.72
		500	$ 1.61
		1000	$ 1.50
		2500	$ 1.37
		5000	$ 1.28

Description

General part information

TL1265 Series

Tactile Switch SPST-NO Top Actuated Through Hole

Documents

Technical documentation and resources

No documents available
