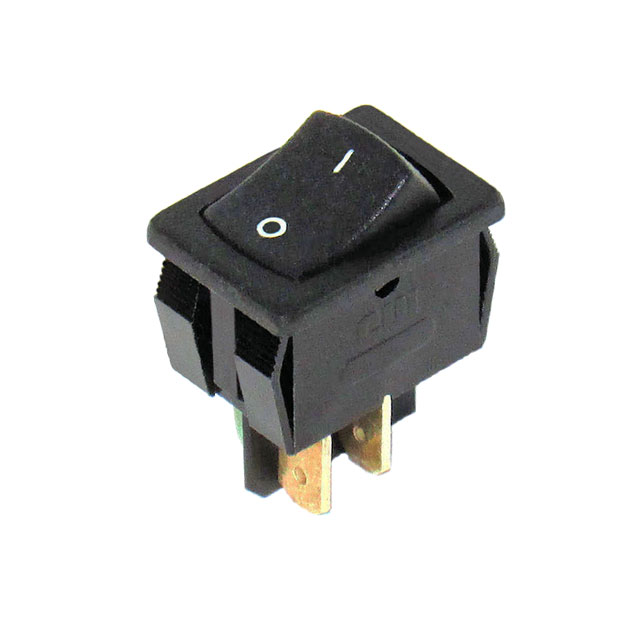

GRS-4011-0015

Active

CW Industries

SWITCH ROCKER SPST 8A 125V

Deep-Dive with AI

Search across all available documentation for this part.

GRS-4011-0015

Active

CW Industries

SWITCH ROCKER SPST 8A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-4011-0015

Actuator Marking	O I
Actuator Type	Concave (Curved)
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	8 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

GRS-4011 Series

Part	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Features	Actuator Type	Actuator Marking	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Electrical Life	Mounting Type	Mechanical Life	Current Rating (Amps)
CW Industries GRS-4011-0015	125 V	Black	Quick Connect - 0.187" (4.7mm)	Terminal Barriers	Concave (Curved)	O I	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	25000 Steps	8 A
CW Industries GRS-4011-0041	125 V	Black	Quick Connect - 0.187" (4.7mm)	Terminal Barriers	Concave (Curved)	O I	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	25000 Steps	16 A
CW Industries GRS-4011-0089	125 V	White	Quick Connect - 0.110" (2.8mm)	Terminal Barriers	Concave (Curved)	No Marking	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	25000 Steps	16 A
CW Industries GRS-4011-0012	125 V	Black	Quick Connect - 0.187" (4.7mm)		Concave (Curved)	No Marking	On-Off	12.9 mm	Rectangular	19.2 mm			SPST		Panel Mount Snap-In		16 A
CW Industries GRS-4011-0028	125 V	White	Quick Connect - 0.187" (4.7mm)		Concave (Curved)	No Marking	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	25000 Steps	16 A
CW Industries GRS-4011B-1300	125 V	Black	Quick Connect - 0.187" (4.7mm)		Concave (Curved)	No Marking	Off-Mom	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST-NO	25000 Steps	Panel Mount Snap-In	100000 Cycles	13 A
CW Industries GRS-4011-0068	125 V	Black	Quick Connect - 0.187" (4.7mm)		Concave (Curved)	O I	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	100000 Cycles	16 A
CW Industries GRS-4011C-0001	125 V	Black	Quick Connect - 0.187" (4.7mm)	Terminal Barriers	Concave (Curved)	No Marking	On-Mom	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST-NC	25000 Steps	Panel Mount Snap-In	25000 Steps	8 A
CW Industries GRS-4011-0148	125 V	Black	Quick Connect - 0.187" (4.7mm)		Concave (Curved)	Fan	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	25000 Steps	13 A
CW Industries GRS-4011-0021	125 V	Black	Quick Connect - 0.187" (4.7mm)		Concave (Curved)	O -	On-Off	12.9 mm	Rectangular	19.2 mm	-20 C	105 ░C	SPST	25000 Steps	Panel Mount Snap-In	100000 Cycles	16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.76

Description

General part information

GRS-4011 Series

Rocker Switch SPST 8A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
