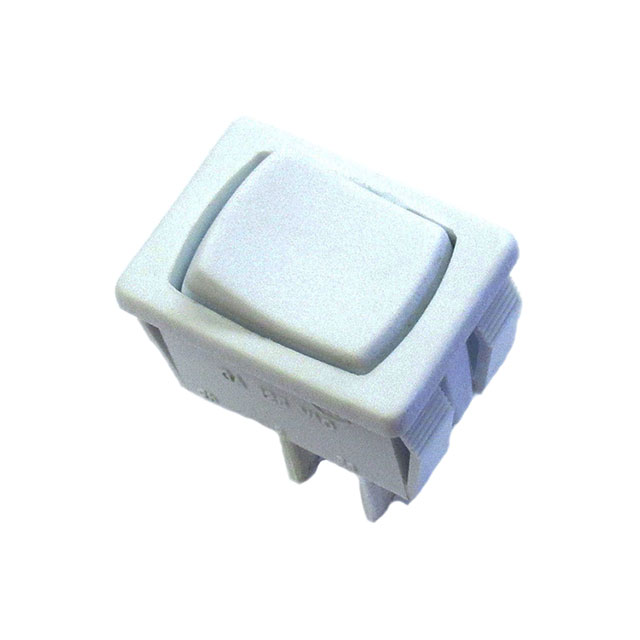

GRS-4011-0028

Obsolete

CW Industries

SWITCH ROCKER SPST 16A 125V

GRS-4011-0028

Obsolete

CW Industries

SWITCH ROCKER SPST 16A 125V

Description Specifications Series Pricing CAD Documents

Description

General part information

GRS-4011 Series

Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-4011-0028

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPST
Color - Actuator/Cap	White
Current Rating	16 A
Electrical Life (Cycles)	25000
Mechanical Life (Cycles)	25000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	19.2 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	12.9 mm
Quick Connect Size (0.187")	0.187 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V

GRS-4011 Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Current Rating	Quick Connect Size (0.110")	Termination Style	Color - Actuator/Cap	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Switch Function	Voltage Rating - AC	Circuit	Actuator Marking	Mounting Type	Features	Quick Connect Size (0.187")
CW Industries GRS-4011-0049	25000	25000 Cycles	16 A	0.11 in	Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	No Marking	Panel Mount Snap-In
CW Industries GRS-4011-0015	25000	25000 Cycles	8 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	O I	Panel Mount Snap-In	Terminal Barriers	0.187 in
CW Industries GRS-4011-0041	25000	25000 Cycles	16 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	O I	Panel Mount Snap-In	Terminal Barriers	0.187 in
CW Industries GRS-4011-0089	25000	25000 Cycles	16 A	0.11 in	Quick Connect	White	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	No Marking	Panel Mount Snap-In	Terminal Barriers
CW Industries GRS-4011-0012			16 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm			Concave (Curved)	On-Off	125 V	SPST	No Marking	Panel Mount Snap-In		0.187 in
CW Industries GRS-4011-0028	25000	25000 Cycles	16 A		Quick Connect	White	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	No Marking	Panel Mount Snap-In		0.187 in
CW Industries GRS-4011B-1300	25000	100000 Cycles	13 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	Off-Mom	125 V	SPST-NO	No Marking	Panel Mount Snap-In		0.187 in
CW Industries GRS-4011-0068	25000	100000 Cycles	16 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	O I	Panel Mount Snap-In		0.187 in
CW Industries GRS-4011C-0001	25000	25000 Cycles	8 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Mom	125 V	SPST-NC	No Marking	Panel Mount Snap-In	Terminal Barriers	0.187 in
CW Industries GRS-4011-0148	25000	25000 Cycles	13 A		Quick Connect	Black	19.2 mm	Rectangular	12.9 mm	-20 °C	105 °C	Concave (Curved)	On-Off	125 V	SPST	Fan	Panel Mount Snap-In		0.187 in
