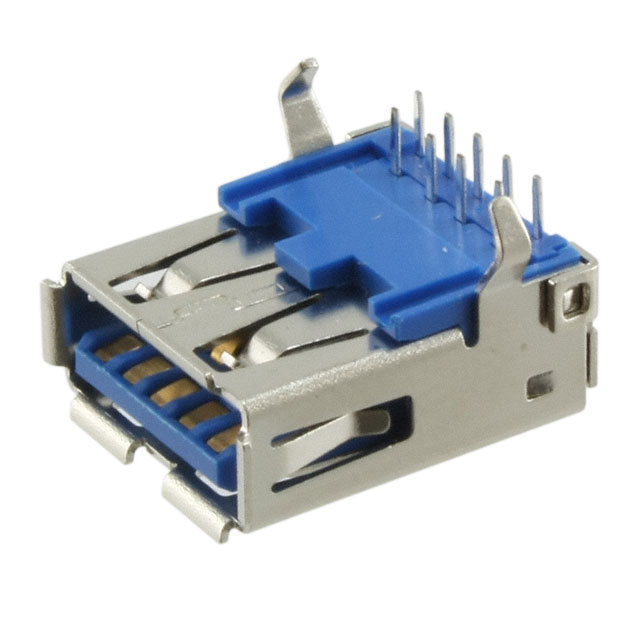

AU-Y1005-3

Active

Assmann WSW Components

CONN RCPT USB3.2 TYPEA 9POS RA

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN RCPT USB3.2 TYPEA 9POS RA

Technical Specifications

Parameters and characteristics for this part

Specification	AU-Y1005-3

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Brass
Termination	Solder

Part	Connector Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Number of Ports	Mating Cycles	Contact Finish	Current Rating (Amps)	Gender	Shell/Shielding Material	Mounting Type	Specifications	Insulation Color	Material Flammability Rating	Mounting Feature	Number of Contacts
Assmann WSW Components AU-Y1005-2	USB-A (USB TYPE-A)	Solder	85 °C	-55 °C	4	1	1500	Gold	1.5 A	Receptacle	Brass	Through Hole Right Angle	USB 2.0	White	UL94 V-0	Horizontal
Assmann WSW Components AU-Y1005-3	USB-A (USB TYPE-A)	Solder	85 °C	-55 °C		1	1500	Gold		Receptacle	Brass	Through Hole Right Angle		Blue	UL94 V-0	Horizontal	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Through Hole, Right Angle
