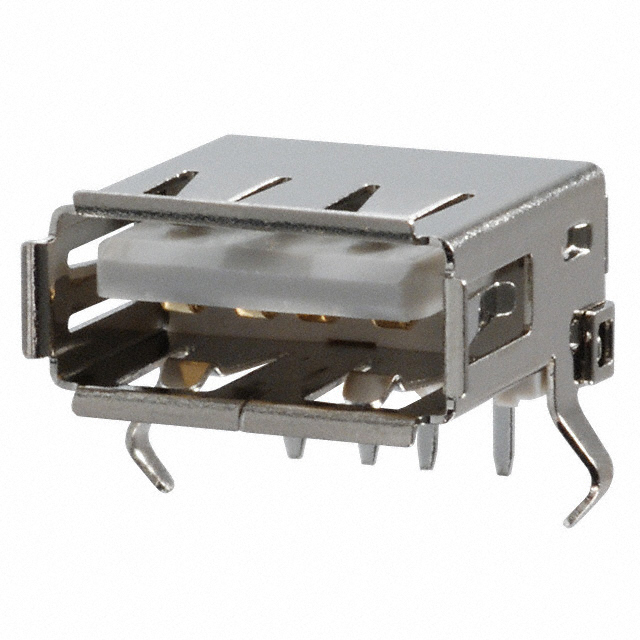

AU-Y1005-2
ActiveAssmann WSW Components
CONN RCPT USB2.0 TYPEA 4POS R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AU-Y1005-2
ActiveAssmann WSW Components
CONN RCPT USB2.0 TYPEA 4POS R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AU-Y1005-2 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Brass |
| Specifications | USB 2.0 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.70 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.56 | |||
| 40 | $ 0.53 | |||
| 100 | $ 0.51 | |||
| 300 | $ 0.46 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.36 | |||
| 2400 | $ 0.33 | |||
Description
General part information
AU-Y1005 Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
