150224-6002-RB

Active

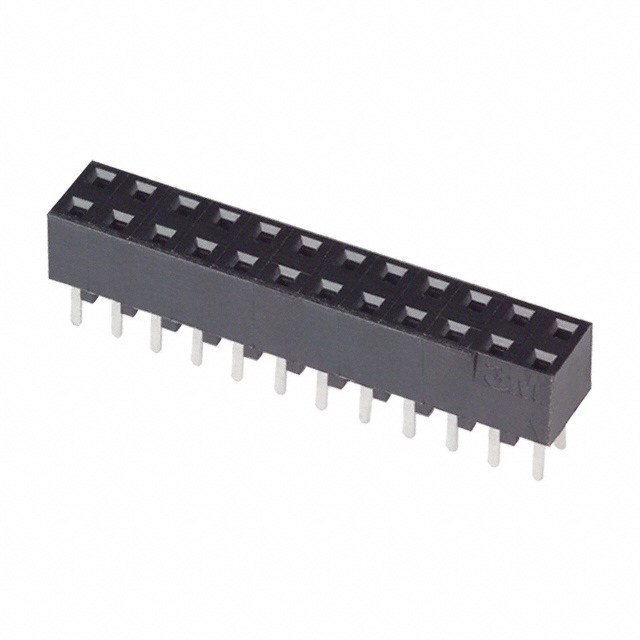

CONN RCPT 24POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150224-6002-RB

Active

CONN RCPT 24POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150224-6002-RB	150224 Series

	-	-
Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Pick and Place, Board Guide
Insulation Color	Black	Black
Insulation Height	0.177 in	0.177 - 0.183 in
Insulation Height	4.5 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150224 Series

CONN RCPT 24POS 0.079 GOLD SMD

Part	Material Flammability Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Style	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Contact Material	Insulation Color	Number of Positions	Fastening Type	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Features	Insulation Material	Contact Length - Post	Contact Length - Post
3M 150224-2020-RB-WD	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Board Guide, Pick and Place	Thermoplastic
3M 150224-5002-TH	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.55 mm	0.179 "	Through Hole, Right Angle	Board to Board, Cable	Tin-Lead	Solder	15 µin	0.38 µm	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic	2.54 mm	0.1 in
3M 150224-2000-RB-WD	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Pick and Place	Thermoplastic
3M 150224-5002-RB	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.55 mm	0.179 "	Through Hole, Right Angle	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic	2.54 mm	0.1 in
3M 150224-2000-TH-WD	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin-Lead	Solder	15 µin	0.38 µm	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Pick and Place	Thermoplastic
3M 150224-5022-RB	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.55 mm	0.179 "	Through Hole, Right Angle	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Board Guide	Thermoplastic	2.54 mm	0.1 in
3M 150224-2000-TH	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin-Lead	Solder	15 µin	0.38 µm	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic
3M 150224-2000-RB
3M 150224-6002-RB	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.5 mm	0.177 in	Through Hole	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.17
		10	$ 3.78
		154	$ 3.33
		462	$ 2.83
		1078	$ 2.42

Description

General part information

150224 Series

24 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
