150224-2000-RB-WD

Active

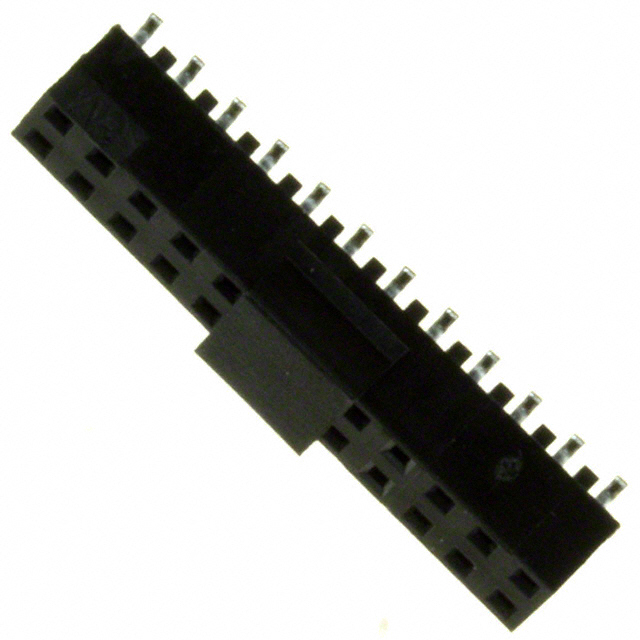

CONN RCPT 24POS 0.079 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150224-2000-RB-WD

Active

CONN RCPT 24POS 0.079 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1950	$ 2.38

Description

General part information

150224 Series

24 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150224-2000-RB-WD	150224 Series

	-	-
Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.54 mm
Contact Length - Post	-	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place	Pick and Place, Board Guide
Insulation Color	Black	Black
Insulation Height	4.65 mm	4.5 - 4.65 mm
Insulation Height	0.183 in	0.177 - 0.183 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150224 Series

CONN RCPT 24POS 0.079 GOLD SMD

Part	Material Flammability Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Style	Contact Finish - Post	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Contact Material	Insulation Color	Number of Positions	Fastening Type	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Features	Insulation Material	Contact Length - Post	Contact Length - Post
3M 150224-2020-RB-WD	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Board Guide, Pick and Place	Thermoplastic
3M 150224-5002-TH	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.55 mm	0.179 "	Through Hole, Right Angle	Board to Board, Cable	Tin-Lead	Solder	15 µin	0.38 µm	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic	2.54 mm	0.1 in
3M 150224-2000-RB-WD	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Pick and Place	Thermoplastic
3M 150224-5002-RB	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.55 mm	0.179 "	Through Hole, Right Angle	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic	2.54 mm	0.1 in
3M 150224-2000-TH-WD	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin-Lead	Solder	15 µin	0.38 µm	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Pick and Place	Thermoplastic
3M 150224-5022-RB	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.55 mm	0.179 "	Through Hole, Right Angle	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket	Board Guide	Thermoplastic	2.54 mm	0.1 in
3M 150224-2000-TH	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.65 mm	0.183 in	Surface Mount	Board to Board, Cable	Tin-Lead	Solder	15 µin	0.38 µm	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic
3M 150224-2000-RB
3M 150224-6002-RB	UL94 V-0	Square	105 ░C	-55 °C	Gold	4.5 mm	0.177 in	Through Hole	Board to Board, Cable	Tin	Solder	30 Áin	0.76 Ám	2	200 µin	5.08 µm	500 V	Copper Alloy	Black	24	Push-Pull	All	0.079 in	2 mm	0.079 in	2 mm	Receptacle	Female Socket		Thermoplastic	2.54 mm	0.1 in
