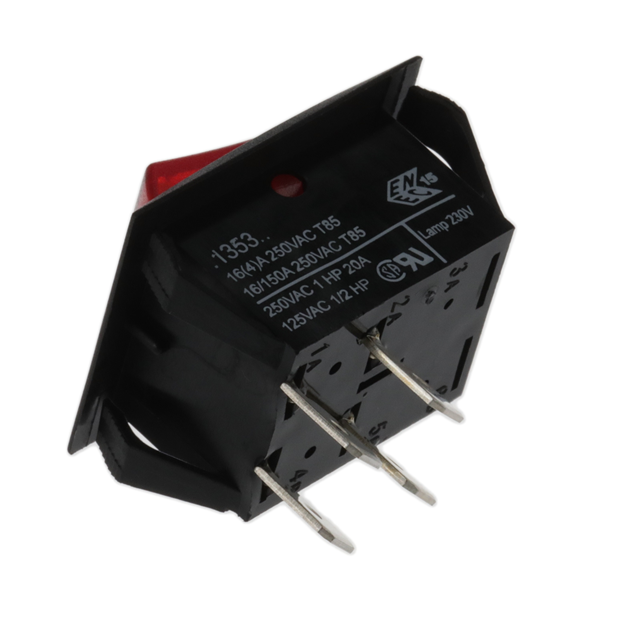

C1353ARBR3602AW
ActiveBULGIN LIMITED
SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 20A 250VAC 72VDC 745.7VA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1353ARBR3602AW
ActiveBULGIN LIMITED
SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 20A 250VAC 72VDC 745.7VA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1353ARBR3602AW |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 20 A |
| Illumination Type, Color | Red, Neon |
| Illumination Voltage (Nominal) | 250 VAC |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 25.4 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C1353AR Series
Rocker Switch DPST-NO 20A (AC/DC) 250 V Panel Mount, Snap-In
