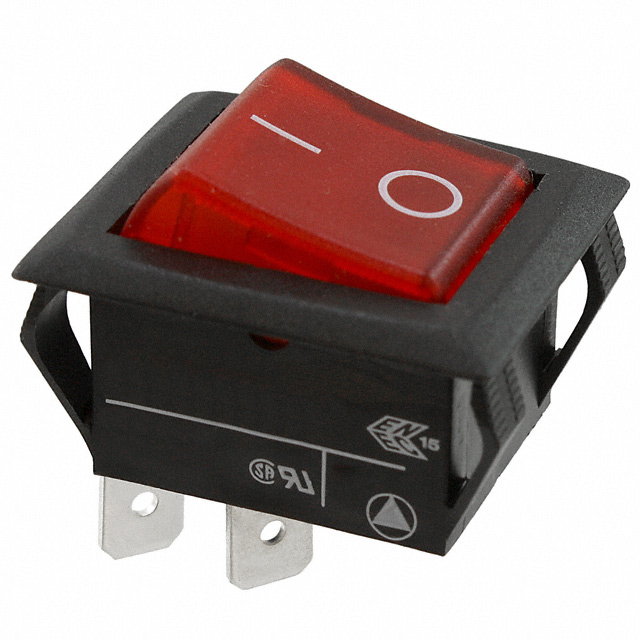

C1353ARBR2-602AW-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPST-NO 20A 250V
Deep-Dive with AI
Search across all available documentation for this part.
C1353ARBR2-602AW-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPST-NO 20A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1353ARBR2-602AW-B |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) - Illuminated |
| Approval Agency | CSA, UL |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 20 A |
| Features | Antimicrobial |
| Illumination Type, Color | Red, Neon |
| Illumination Voltage (Nominal) | 125 VAC |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.5 mm |
| Panel Cutout Dimensions [y] | 25.4 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 12.29 | |
Description
General part information
C1353AR Series
Rocker Switch DPST-NO 20A (AC/DC) 250 V Panel Mount, Snap-In
