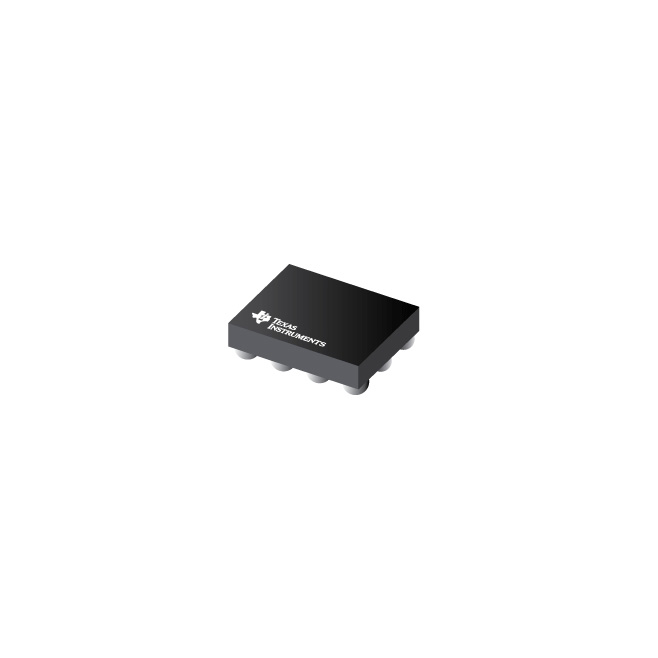

BQ27Z561YPHR-R2
ActiveIMPEDANCE TRACK BATTERY GAS GAUGE SOLUTION FOR 1-SERIES CELL LI-ION BATTERY PACKS
Deep-Dive with AI
Search across all available documentation for this part.
BQ27Z561YPHR-R2
ActiveIMPEDANCE TRACK BATTERY GAS GAUGE SOLUTION FOR 1-SERIES CELL LI-ION BATTERY PACKS
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ27Z561YPHR-R2 | BQ27Z561 Series |
|---|---|---|
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Contents | - | Board(s) |
| Embedded | - | Yes, MCU, 16-Bit |
| Fault Protection | Short Circuit, Over Current | Short Circuit, Over Current |
| Function | Battery Authentication | Fuel Gauge, Battery Authentication |
| Interface | I2C | I2C, HDQ |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Cells | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | DSBGA, 12-XFBGA | DSBGA, 12-XFBGA |
| Secondary Attributes | - | Graphical User Interface (GUI), I2C Interface(s) |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 12-DSBGA | 12-DSBGA |
| Supplier Device Package [x] | 1.68 | 1.68 |
| Supplier Device Package [y] | 2.05 | 2.05 |
| Type | - | Power Management |
| Utilized IC / Part | - | BQ27Z561 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.89 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.45 | |||
| 100 | $ 2.09 | |||
| 250 | $ 1.96 | |||
| 500 | $ 1.71 | |||
| 1000 | $ 1.42 | |||
| Digi-Reel® | 1 | $ 2.89 | ||
| 10 | $ 2.60 | |||
| 25 | $ 2.45 | |||
| 100 | $ 2.09 | |||
| 250 | $ 1.96 | |||
| 500 | $ 1.71 | |||
| 1000 | $ 1.42 | |||
| Tape & Reel (TR) | 3000 | $ 1.21 | ||
| Texas Instruments | LARGE T&R | 1 | $ 1.57 | |
| 100 | $ 1.29 | |||
| 250 | $ 0.93 | |||
| 1000 | $ 0.70 | |||
BQ27Z561 Series
Impedance Track™ battery gas gauge solution for 1-series cell Li-ion battery packs
| Part | Number of Cells | Interface | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Mounting Type | Supplier Device Package | Supplier Device Package [x] | Supplier Device Package [y] | Package / Case | Function | Supplied Contents | Utilized IC / Part | Embedded | Type | Secondary Attributes | Contents | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ27Z561YPHR-R1 | 1 | HDQ, I2C | 85 °C | -40 °C | Lithium Ion/Polymer | Surface Mount | 12-DSBGA | 1.68 | 2.05 | 12-XFBGA, DSBGA | Fuel Gauge | |||||||
Texas Instruments BQ27Z561YPHR | 1 | HDQ, I2C | 85 °C | -40 °C | Lithium Ion/Polymer | Surface Mount | 12-DSBGA | 1.68 | 2.05 | 12-XFBGA, DSBGA | Fuel Gauge | |||||||
Texas Instruments BQ27Z561EVM-011 | Fuel Gauge | Board(s) | BQ27Z561 | Yes, MCU, 16-Bit | Power Management | Graphical User Interface (GUI), I2C Interface(s) | Board(s) | |||||||||||
Texas Instruments BQ27Z561YPHR-R2 | 1 | I2C | 85 °C | -40 °C | Lithium Ion/Polymer | Surface Mount | 12-DSBGA | 1.68 | 2.05 | 12-XFBGA, DSBGA | Battery Authentication | Over Current, Short Circuit |
Description
General part information
BQ27Z561 Series
The Texas Instruments BQ27Z561-R1 Impedance Track™ gas gauge solution is a highly integrated, accurate 1-series cell gas gauge with a flash programmable custom reduced instruction-set CPU (RISC) and SHA-256 authentication for li-ion and li-polymer battery packs. The 1-series cell capability includes parallel cells for increased capacity.
The BQ27Z561-R1 gas gauge communicates via I2C-compatible and HDQ one-wire interfaces and includes several key features that can help facilitate accurate gas gauging applications. Integrated temperature sense functions (internal and external options) enable system and battery temperature measurements.
The Texas Instruments BQ27Z561-R1 Impedance Track™ gas gauge solution is a highly integrated, accurate 1-series cell gas gauge with a flash programmable custom reduced instruction-set CPU (RISC) and SHA-256 authentication for li-ion and li-polymer battery packs. The 1-series cell capability includes parallel cells for increased capacity.
