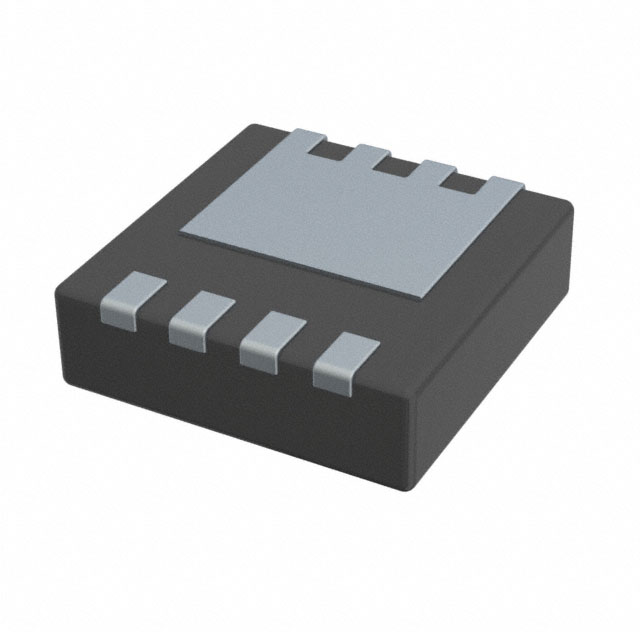

BSZ086P03NS3EGATMA1
ActiveInfineon Technologies
OPTIMOS™ P-CHANNEL POWER MOSFET -30 V ; PQFN 3.3 X 3.3 PACKAGE; 8.6 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
BSZ086P03NS3EGATMA1
ActiveInfineon Technologies
OPTIMOS™ P-CHANNEL POWER MOSFET -30 V ; PQFN 3.3 X 3.3 PACKAGE; 8.6 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSZ086P03NS3EGATMA1 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 40 A, 13.5 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 6 V, 10 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 57.5 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 4785 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) | 69 W, 2.1 W |
| Rds On (Max) @ Id, Vgs | 8.6 mOhm |
| Supplier Device Package | PG-TSDSON-8 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 25 V |
| Vgs(th) (Max) @ Id | 3.1 V |
