102110409

Active

NVIDIA

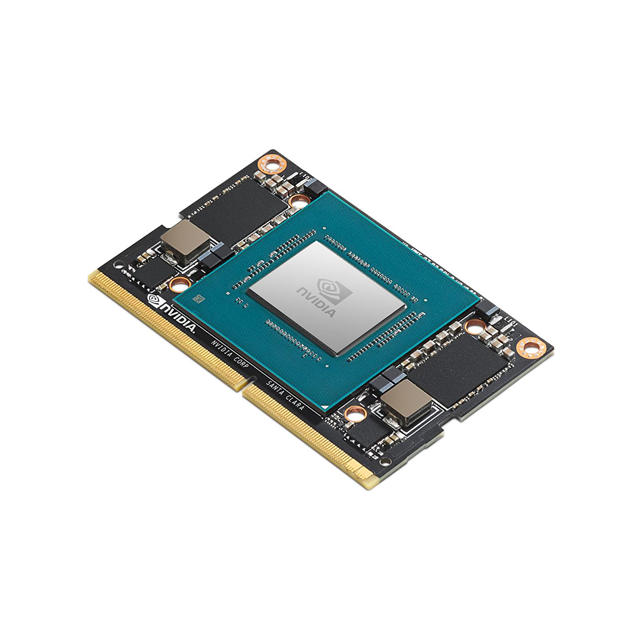

SBC 1.9GHZ 6 CORE 8GB RAM

Search across all available documentation for this part.

Active

NVIDIA

SBC 1.9GHZ 6 CORE 8GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102110409	102110 Series

Cooling Type	-	Fan + Heat Sink
Core Processor	NVIDIA Carmel ARMv8.2	NVIDIA Carmel ARMv8.2, ARM Cortex-A57, NVIDIA Denver 2
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Ethernet	-	GbE
Expansion Site/Bus	PCIe	I2C, GPIO, UART, SPI, PCIe, CAN, I2S, SDIO
Form Factor	Small Size	Small Size
Number of Cores	6	4 - 256
Power (Watts)	15 W	10 - 20 W
RAM Capacity/Installed	8 GB	0 - 16 GB
RAM Capacity/Installed	-	8 GB
RAM Capacity/Installed	-	0 GB
Size / Dimension	-	69.6 mm
Size / Dimension [x]	70.1 mm	45 - 99.99 mm
Size / Dimension [x]	2.76 in	1.771 - 3.937 in
Size / Dimension [y]	1.77 "	1.77 - 3.15 in
Size / Dimension [y]	44.95 mm	44.95 - 80.01 mm
Speed	1.9 GHz	1.43 - 1.9 GHz
Storage Interface	eMMC	microSD, eMMC, eMMC 5.1
USB	USB 3.1 (1), USB 2.0 (3)	USB 2.0 (2), USB 3.0 (1), USB 3.1 (1), USB 2.0 (3)
Video Outputs	HDMI, eDP, DP	HDMI, eDP, DP, MIPI-CSI-2, DSI
Watchdog Timer	False	False

SBC 1.43GHZ 4 CORE 4GB/0GB RAM

Part	Power (Watts)	Storage Interface	Video Outputs	Ethernet	RAM Capacity/Installed	Expansion Site/Bus	USB	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Speed	Cooling Type	Number of Cores	Core Processor	Form Factor	Ethernet	Size / Dimension [y]	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
NVIDIA 102110408	10 W	microSD	HDMI	GbE	0 GB, 4 GB	GPIO, I2C, SPI, UART	USB 2.0 (2), USB 3.0 (1)	80.01 mm	3.937 in	99.99 mm	3.15 in	1.43 GHz	Fan + Heat Sink	4
NVIDIA 102110409	15 W	eMMC	DP, eDP, HDMI		8 GB	PCIe	USB 2.0 (3), USB 3.1 (1)	44.95 mm	2.76 in	70.1 mm	1.77 "	1.9 GHz		6	NVIDIA Carmel ARMv8.2	Small Size	10 Mbps, 100 Mbps, 1000 Mbps
NVIDIA 102110659	10 W, 15 W, 20 W	eMMC 5.1	HDMI		16 GB	CAN, GPIO, I2C, I2S, SDIO, SPI, UART	USB 2.0 (3), USB 3.1 (1)		1.771 in	45 mm	2.74 "	1.9 GHz		6	NVIDIA Carmel ARMv8.2		10 Mbps, 100 Mbps, 1000 Mbps	69.6 mm
NVIDIA 102110402	15 W	eMMC	DP, DSI, eDP, HDMI, MIPI-CSI-2			PCIe		50.03 mm	3.43 in	87.12 mm	1.97 "	1.866 GHz		256	ARM Cortex-A57, NVIDIA Denver 2		10 Mbps, 100 Mbps, 1000 Mbps		8 GB	0 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 623.75

General part information

Single Board Computer 1.9GHz 6 Core 8GB/8GB RAM NVIDIA Carmel ARMv8.2
