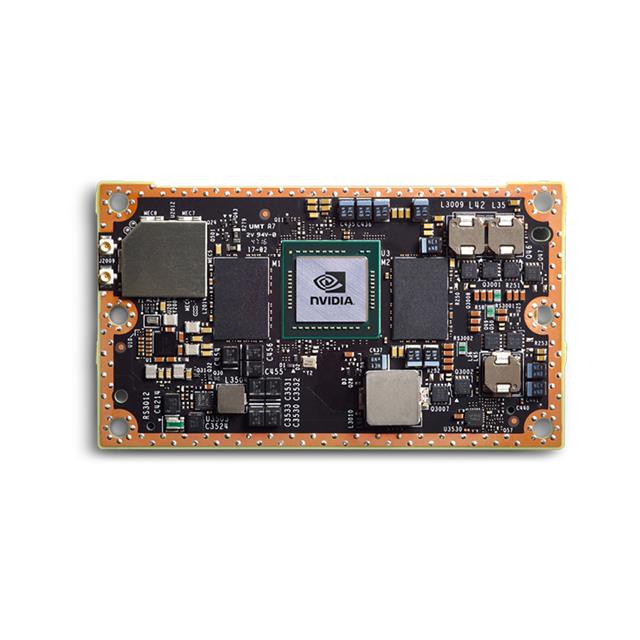

102110402

Active

NVIDIA

SBC 1.866GHZ 2/4 CORE 8GB RAM

Search across all available documentation for this part.

Active

NVIDIA

SBC 1.866GHZ 2/4 CORE 8GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102110402	102110 Series

Cooling Type	-	Fan + Heat Sink
Core Processor	ARM Cortex-A57, NVIDIA Denver 2	NVIDIA Carmel ARMv8.2, ARM Cortex-A57, NVIDIA Denver 2
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Ethernet	-	GbE
Expansion Site/Bus	PCIe	I2C, GPIO, UART, SPI, PCIe, CAN, I2S, SDIO
Form Factor	-	Small Size
Number of Cores	256	4 - 256
Power (Watts)	15 W	10 - 20 W
RAM Capacity/Installed	-	0 - 16 GB
RAM Capacity/Installed [custom]	8 GB	8 GB
RAM Capacity/Installed [custom]	0 GB	0 GB
Size / Dimension	-	69.6 mm
Size / Dimension [x]	3.43 in	1.771 - 3.937 in
Size / Dimension [x]	87.12 mm	45 - 99.99 mm
Size / Dimension [y]	1.97 "	1.77 - 3.15 in
Size / Dimension [y]	50.03 mm	44.95 - 80.01 mm
Speed	1.866 GHz	1.43 - 1.9 GHz
Storage Interface	eMMC	microSD, eMMC, eMMC 5.1
USB	-	USB 2.0 (2), USB 3.0 (1), USB 3.1 (1), USB 2.0 (3)
Video Outputs	MIPI-CSI-2, DSI, eDP, DP, HDMI	HDMI, eDP, DP, MIPI-CSI-2, DSI
Watchdog Timer	False	False

SBC 1.43GHZ 4 CORE 4GB/0GB RAM

Part	Power (Watts)	Storage Interface	Video Outputs	Ethernet	RAM Capacity/Installed	Expansion Site/Bus	USB	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Speed	Cooling Type	Number of Cores	Core Processor	Form Factor	Ethernet	Size / Dimension [y]	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]
NVIDIA 102110408	10 W	microSD	HDMI	GbE	0 GB, 4 GB	GPIO, I2C, SPI, UART	USB 2.0 (2), USB 3.0 (1)	80.01 mm	3.937 in	99.99 mm	3.15 in	1.43 GHz	Fan + Heat Sink	4
NVIDIA 102110409	15 W	eMMC	DP, eDP, HDMI		8 GB	PCIe	USB 2.0 (3), USB 3.1 (1)	44.95 mm	2.76 in	70.1 mm	1.77 "	1.9 GHz		6	NVIDIA Carmel ARMv8.2	Small Size	10 Mbps, 100 Mbps, 1000 Mbps
NVIDIA 102110659	10 W, 15 W, 20 W	eMMC 5.1	HDMI		16 GB	CAN, GPIO, I2C, I2S, SDIO, SPI, UART	USB 2.0 (3), USB 3.1 (1)		1.771 in	45 mm	2.74 "	1.9 GHz		6	NVIDIA Carmel ARMv8.2		10 Mbps, 100 Mbps, 1000 Mbps	69.6 mm
NVIDIA 102110402	15 W	eMMC	DP, DSI, eDP, HDMI, MIPI-CSI-2			PCIe		50.03 mm	3.43 in	87.12 mm	1.97 "	1.866 GHz		256	ARM Cortex-A57, NVIDIA Denver 2		10 Mbps, 100 Mbps, 1000 Mbps		8 GB	0 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 650.00

General part information

Single Board Computer 1.866GHz 256 Core 8GB/0GB RAM NVIDIA Denver 2, ARM Cortex-A57
