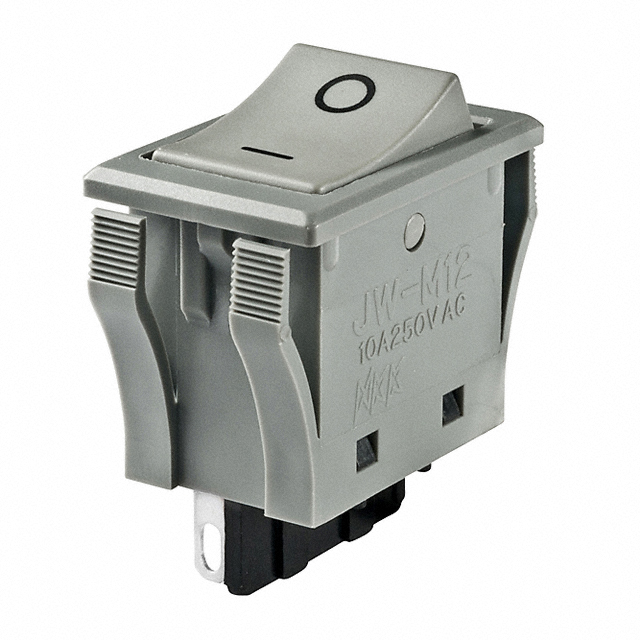

JWM12RH1H/UCV

Active

NKK Switches

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Current Rating (Amps)	Ingress Protection	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Actuator/Cap	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Circuit	Features	Electrical Life	Actuator Marking	Mechanical Life
NKK Switches JWM12RAA	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In	Black	CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	No Marking	25000 Steps
NKK Switches JWM12RH1H/UCV	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In		CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	O I	25000 Steps
NKK Switches JWM12RBB/UCV	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In	Ivory	CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	No Marking	25000 Steps
NKK Switches JWM12RA2A	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In	Black	CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	O -	25000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
