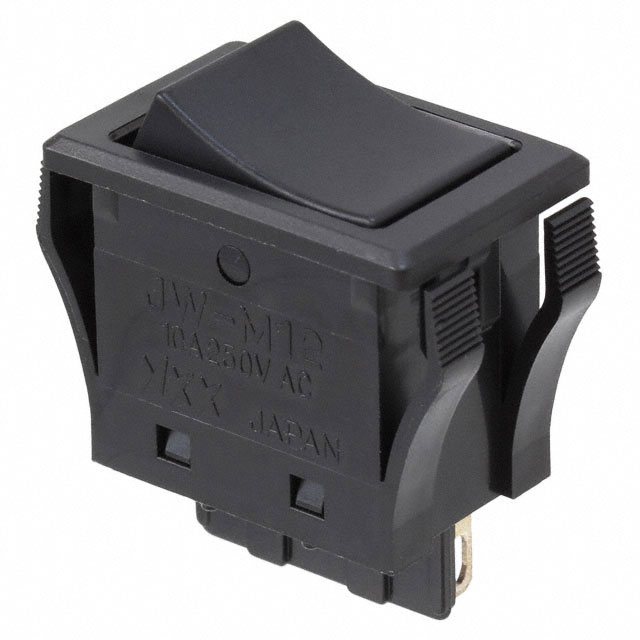

JWM12RAA

Active

NKK Switches

SWITCH ROCKER ON NONE ON SPDT QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 25000CYCLES

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER ON NONE ON SPDT QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 25000CYCLES

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Current Rating (Amps)	Ingress Protection	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Actuator/Cap	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Termination Style	Termination Style	Termination Style	Circuit	Features	Electrical Life	Actuator Marking	Mechanical Life
NKK Switches JWM12RAA	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In	Black	CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	No Marking	25000 Steps
NKK Switches JWM12RH1H/UCV	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In		CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	O I	25000 Steps
NKK Switches JWM12RBB/UCV	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In	Ivory	CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	No Marking	25000 Steps
NKK Switches JWM12RA2A	Concave (Curved)	10 A	Dust Proof	On-On	70 °C	-25 °C	Panel Mount Snap-In	Black	CSA UL VDE	24 mm	15.4 mm	125 V	0.11 in	Quick Connect Solder	2.8 mm	SPDT	Epoxy Sealed Terminals	25000 Steps	O -	25000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Snap-In
