581-M15-113L462
ActiveMH Connectors

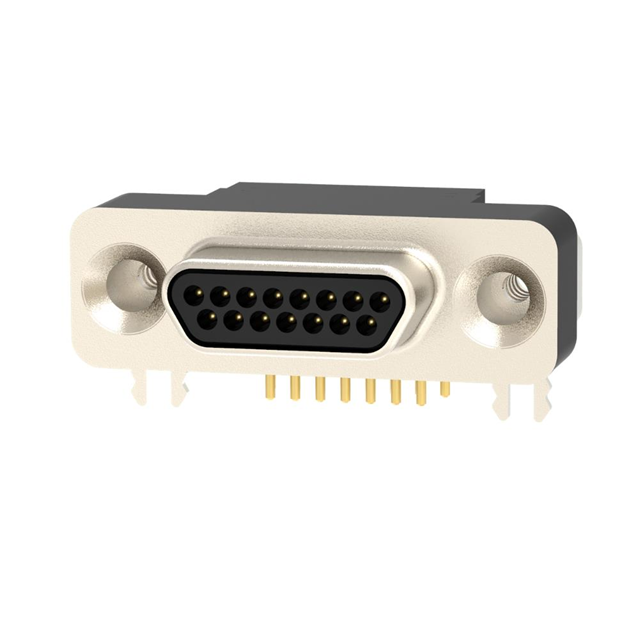

CONN MICRO-D MALE 15P RA PCB 30U
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
581-M15-113L462
ActiveMH Connectors
CONN MICRO-D MALE 15P RA PCB 30U
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 581-M15-113L462 |
|---|---|
| Backset Spacing | 5.6 mm |
| Backset Spacing | 0.22 in |
| Color | Black |
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Features | Shielded, Board Lock |
| Flange Feature | Board Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated |
| Shell Material, Finish [custom] | Brass |
| Shell Material, Finish [custom] | Steel |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
| Voltage Rating | 60 VDC |
581-M15 Series
| Part | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Shell Material, Finish | Connector Type | Connector Style | Voltage Rating | Termination | Features | Mounting Type | Color | Number of Positions | Current Rating (Amps) | Contact Finish | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Dielectric Material | Flange Feature | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Brass | Steel | Nickel Plated | Male Pins Plug | D-Type Micro-D | 60 VDC | Solder | Board Lock Shielded | Panel Mount Right Angle Through Hole | Black | 15 | 2 A | Gold | 2 | 125 °C | -40 °C | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Side | 5.6 mm | 0.22 in | 0.043 | 0.05 | 15 µin | 0.38 µm | Brass | Signal |
MH Connectors | Brass | Steel | Nickel Plated | Receptacle Female Sockets | D-Type Micro-D | 60 VDC | Solder | Board Lock Shielded | Panel Mount Right Angle Through Hole | Black | 15 | 2 A | Gold | 2 | 125 °C | -40 °C | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Side | 5.6 mm | 0.22 in | 0.043 | 0.05 | 15 µin | 0.38 µm | Brass | Signal |
MH Connectors | Brass | Steel | Nickel Plated | Receptacle Female Sockets | D-Type Micro-D | 60 VDC | Solder | Board Lock Shielded | Panel Mount Right Angle Through Hole | Black | 15 | 2 A | Gold | 2 | 125 °C | -40 °C | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Side | 5.6 mm | 0.22 in | 0.043 | 0.05 | 30 Áin | 0.76 Ám | Brass | Signal |
MH Connectors | Brass | Steel | Nickel Plated | Male Pins Plug | D-Type Micro-D | 60 VDC | Solder | Board Lock Shielded | Panel Mount Right Angle Through Hole | Black | 15 | 2 A | Gold | 2 | 125 °C | -40 °C | UL94 V-0 | Liquid Crystal Polymer (LCP) | Board Side | 5.6 mm | 0.22 in | 0.043 | 0.05 | 30 Áin | 0.76 Ám | Brass | Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.41 | |
| 10 | $ 21.19 | |||
| 25 | $ 20.42 | |||
Description
General part information
581-M15 Series
15 Position D-Type, Micro-D Plug, Male Pins Connector
