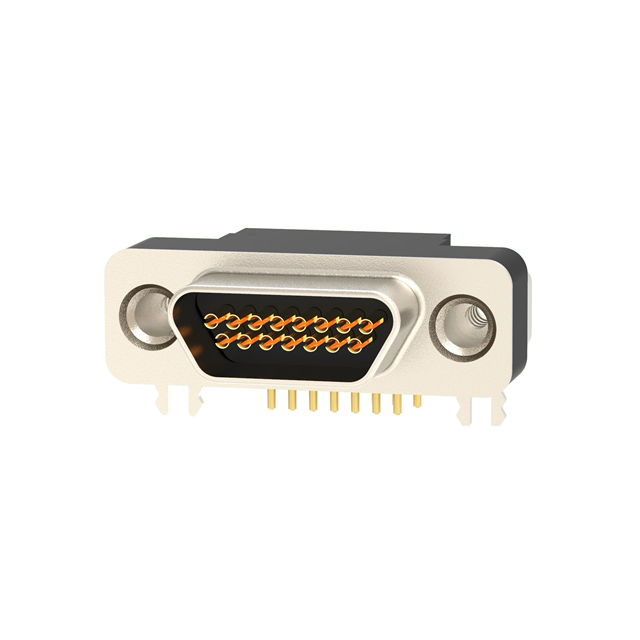

581-M15-213L462
ActiveMH Connectors
CONN MICRO-D FEMALE 15P RA PCB 3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
581-M15-213L462
ActiveMH Connectors
CONN MICRO-D FEMALE 15P RA PCB 3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 581-M15-213L462 |
|---|---|
| Backset Spacing | 5.6 mm |
| Backset Spacing | 0.22 in |
| Color | Black |
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Features | Shielded, Board Lock |
| Flange Feature | Board Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated |
| Shell Material, Finish [custom] | Brass |
| Shell Material, Finish [custom] | Steel |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 44.35 | |
| 10 | $ 34.31 | |||
| 25 | $ 31.13 | |||
| 40 | $ 29.65 | |||
| 80 | $ 27.64 | |||
| 230 | $ 24.94 | |||
Description
General part information
581-M15 Series
15 Position D-Type, Micro-D Receptacle, Female Sockets Connector
