LM3448 Series

Part	Number of Outputs	Internal Switch(s)	Topology	Package Width	Package Name	Package Length	Applications	Dimming	Type	Voltage - Supply (Min)	Mounting Type	Voltage - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Total Output Count	Output Type	Isolated Output Count	Supplied Contents	Contents	Current - Output / Channel	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Features	Voltage - Output	Utilized IC / Part	Non-Isolated Output Count
Texas Instruments LM3448MA/NOPB	1	Yes	Flyback Step-Down (Buck) Step-Up (Boost)	3.9 mm	16-SOIC	0.154 in	Lighting	TRIAC	AC DC Offline Switcher	8 V	Surface Mount	12 V	125 °C	-40 °C
Texas Instruments LM3448-230VFLBK/NOPB															1	Isolated	1	Board(s)	Board	226 mA	265 VAC	180 VAC	Dimmable	27 V	LM3448
Texas Instruments LM3448MAX/NOPB	1	Yes	Flyback Step-Down (Buck) Step-Up (Boost)	3.9 mm	16-SOIC	0.154 in	Lighting	TRIAC	AC DC Offline Switcher	8 V	Surface Mount	12 V	125 °C	-40 °C
Texas Instruments LM3448-120VFLBK/NOPB															1	Isolated	1		Board	228 mA	265 VAC	180 VAC	Dimmable	27 V	LM3448

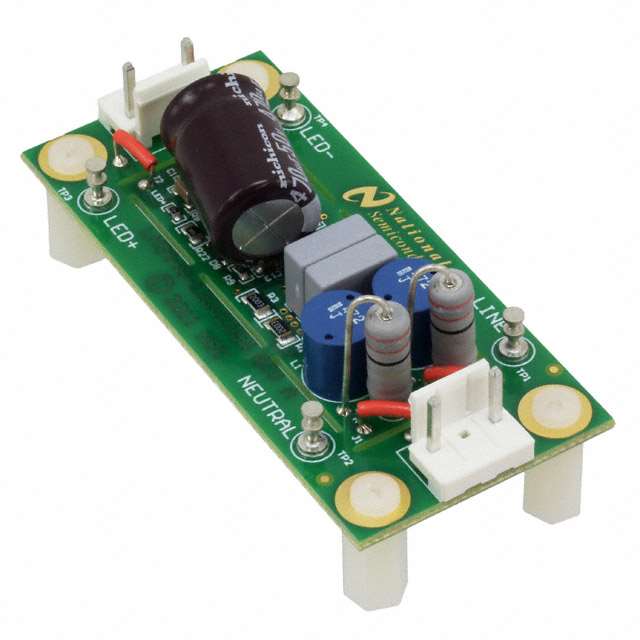

Texas Instruments LM3448-EDSNEV/NOPB															1	Non-Isolated			Board	181 mA	135 VAC	85 VAC	Dimmable	36 V	LM3448	1 count
