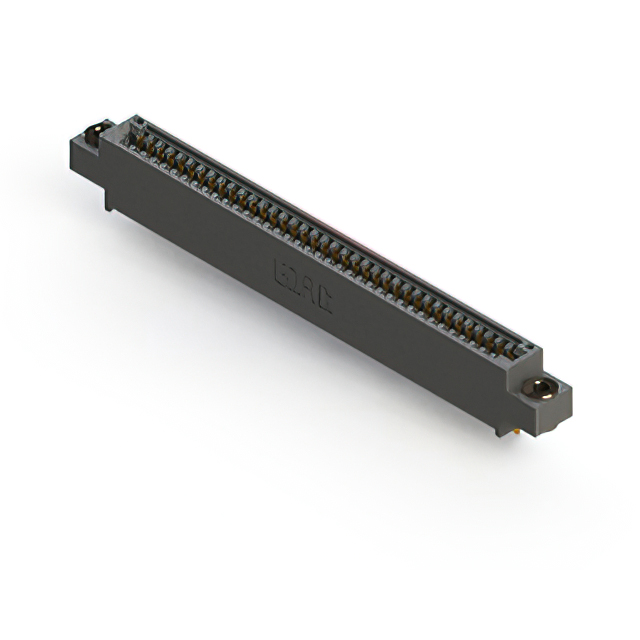

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Connectors, Interconnects

395-037-544-603

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-037-544-603

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Top Mount Opening
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	37 pos
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1 rows

395-037 Series

...

Part	Number of Positions	Flange Feature Diameter	Flange Feature	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Read Out	Contact Finish	Number of Rows	Mounting Type	Termination	Color	Gender	Card Thickness (Min)	Card Thickness (Max)	Card Type	Contact Type	Contact Finish Thickness	Termination Rows	Material - Insulation	Features
EDAC Inc. 395-037-559-612	37 pos	0.128 in	Side Mount Opening Unthreaded	Copper Alloy	-40 °C	105 °C	0.1 in	Single	Gold	1	Right Angle Through Hole	Solder	Black	Female	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	10 Ąin	1 rows	Polyester Thermoplastic
EDAC Inc. 395-037-521-478	37 pos		4-40 Threaded Insert Top Mount Opening	Copper Alloy	-40 °C	105 °C	0.1 in	Single	Gold	1	Through Hole	Solder	Black	Female	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	10 Ąin	1 rows	Polyester Thermoplastic	Card Guides
EDAC Inc. 395-037-544-603	37 pos	0.116 in	Floating Bobbin Top Mount Opening	Copper Alloy	-40 °C	105 °C	0.1 in	Single	Gold	1	Through Hole	Wire Wrap	Black	Female	0.054 in	0.07 in	Non Specified Single Edge	Cantilever	10 Ąin	1 rows	Polyester Thermoplastic
