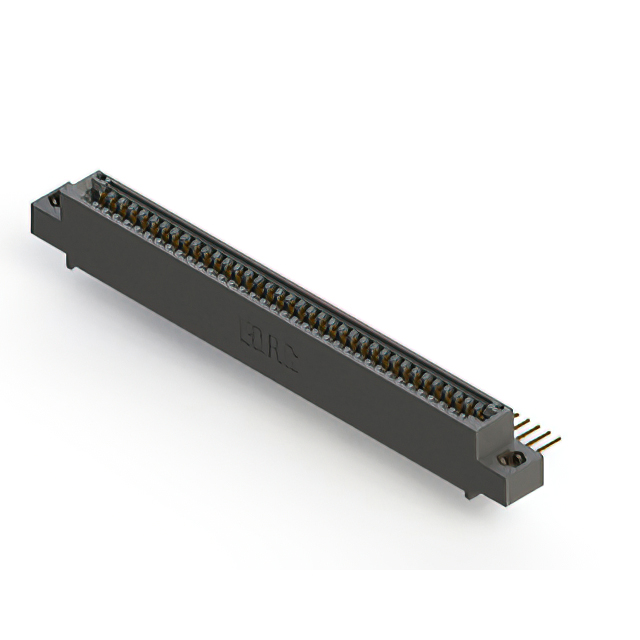

395-037-559-407

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-037-559-407

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-037-559-407

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

395-037 Series

...

Part	Mounting Type	Flange Feature	Color	Number of Positions	Read Out	Features	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Type	Contact Material	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination	Termination Rows	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 395-037-521-478	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	37	Single	Card Guides	Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Solder	1	Gold
EDAC Inc. 395-037-544-603	Through Hole	Floating Bobbin Top Mount Opening	Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Wire Wrap	1	Gold	2.95 mm	0.116 in
EDAC Inc. 395-037-520-478	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	37	Single	Card Guides	Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Solder	1	Gold
EDAC Inc. 395-037-540-103	Through Hole	Floating Bobbin Flush Mount	Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Wire Wrap	1	Gold	2.95 mm	0.116 in
EDAC Inc. 395-037-558-408	Through Hole Right Angle	4-40 Threaded Insert Top Mount Opening	Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Solder	1	Gold
EDAC Inc. 395-037-558-608	Through Hole Right Angle	4-40 Threaded Insert Top Mount Opening	Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Solder	1	Gold
EDAC Inc. 395-037-540-101	Through Hole		Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Wire Wrap	1	Gold
EDAC Inc. 395-037-540-688	Through Hole	4-40 Threaded Insert Top Mount Opening	Black	37	Single	Card Guides	Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Wire Wrap	1	Gold
EDAC Inc. 395-037-559-101	Through Hole Right Angle		Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Solder	1	Gold
EDAC Inc. 395-037-559-407	Through Hole Right Angle	M3 Threaded Insert Top Mount Opening	Black	37	Single		Polyester Thermoplastic	10 Áin	0.25 Ám	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	-40 °C	105 ░C	Female	Cantilever	Copper Alloy	37	37	37	Solder	1	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.83
Newark	Each	1	$ 17.31
		100	$ 13.94
		250	$ 12.53
		500	$ 11.37
		1000	$ 8.78

Description

General part information

395-037 Series

37 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
