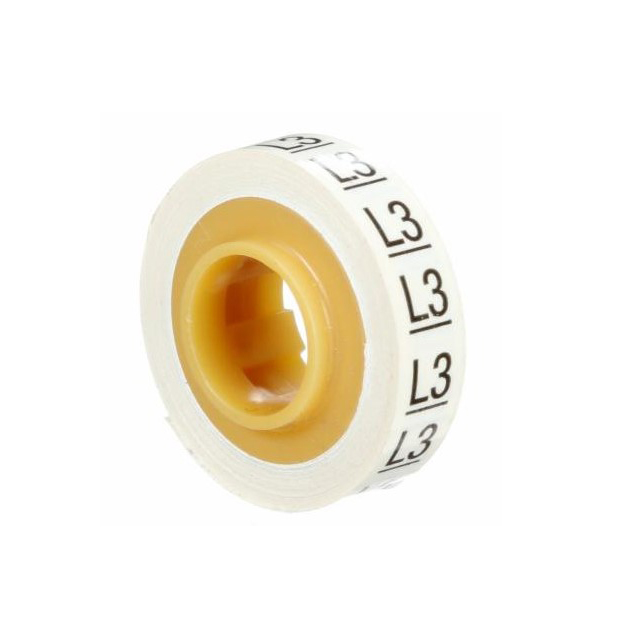

SDR-L3

Active

WIRE MARKER L3 LEGEND 1=10 ROLLS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsScotchCode™ Wire Marking Brochure Datasheet

SDR-L3

Active

WIRE MARKER L3 LEGEND 1=10 ROLLS

Deep-Dive with AI

DocumentsScotchCode™ Wire Marking Brochure Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.30

Description

General part information

SDR Series

Wire Marker, Tape 0.22" W x 96.00" L (5.5mm x 2.4m) White Polyester

Documents

Technical documentation and resources

ScotchCode™ Wire Marking Brochure

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDR-L3	SDR Series

Cable Diameter [diameter]	Cut to Desired Diameter	Cut to Desired Diameter
Color	White	Green, Black, White, Brown, Violet, Gray, Yellow
Legend	L3	Blank, B, K, T, W, L3, G, 3, T1, X, L, L1, 4, 7, 2
Legend	-	19 - 59
Legend	-	10 - 50
Legend	-	6
Legend	-	True
Material	Polyester	Polyester
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Size [x]	0.22 in	0.22 in
Size [x]	5.5 mm	5.5 mm
Size [y]	2.4 m	2.4 m
Size [y]	96 in	96 in
Type	Wire Marker, Tape	Wire Marker, Tape

SDR Series

WIRE MARKER, SCOTCHCODE&TRADE; TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), GREEN

Part	Size [y]	Size [x]	Size [x]	Size [y]	Shelf Life Start	Type	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Legend	Cable Diameter [diameter]	Color	Material
3M SDR-GN	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Green	Polyester
3M SDR-BK	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Black	Polyester
3M SDR-B	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	B	Cut to Desired Diameter	White	Polyester
3M SDR-BN	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Brown	Polyester
3M SDR-K	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	K	Cut to Desired Diameter	White	Polyester
3M SDR-+(PLUS)	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C		Cut to Desired Diameter	White	Polyester
3M SDR-T	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	T	Cut to Desired Diameter	White	Polyester
3M SDR-W	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	W	Cut to Desired Diameter	White	Polyester
3M SDR-L3	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	L3	Cut to Desired Diameter	White	Polyester
3M SDR-G	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	G	Cut to Desired Diameter	White	Polyester
