SDR-K

Active

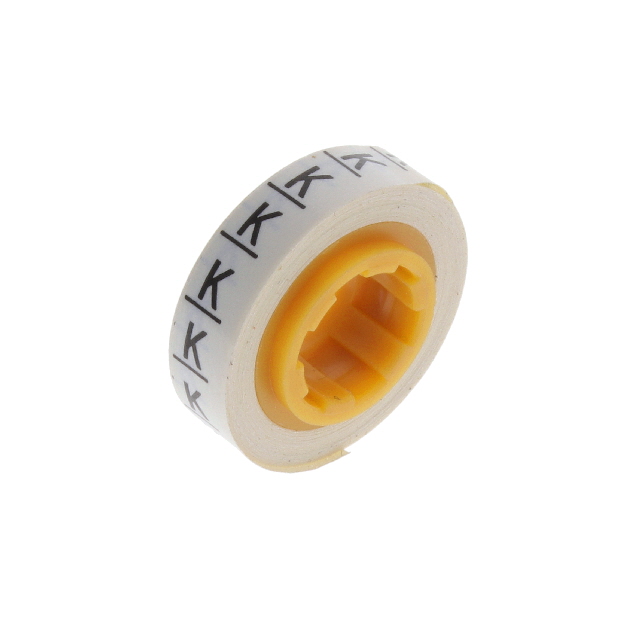

3M SCOTCHCODE WIRE MARKER TAPE REFILL ROLL SDR-K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsScotchCode™ Wire Marking Brochure

SDR-K

Active

3M SCOTCHCODE WIRE MARKER TAPE REFILL ROLL SDR-K

Deep-Dive with AI

DocumentsScotchCode™ Wire Marking Brochure

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.35
		10	$ 7.03
		30	$ 6.39
		50	$ 6.07
		100	$ 5.75
		250	$ 5.43
		500	$ 5.11
		1000	$ 4.79
Newark	Each	10	$ 5.58
		20	$ 5.10
		50	$ 4.83
		100	$ 4.56

Description

General part information

SDR Series

Wire Marker, Tape 0.22" W x 96.00" L (5.5mm x 2.4m) White Polyester

Documents

Technical documentation and resources

ScotchCode™ Wire Marking Brochure

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SDR-K	SDR Series

Cable Diameter [diameter]	Cut to Desired Diameter	Cut to Desired Diameter
Color	White	Green, Black, White, Brown, Violet, Gray, Yellow
Legend	K	Blank, B, K, T, W, L3, G, 3, T1, X, L, L1, 4, 7, 2
Legend	-	19 - 59
Legend	-	10 - 50
Legend	-	6
Legend	-	True
Material	Polyester	Polyester
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Size [x]	0.22 in	0.22 in
Size [x]	5.5 mm	5.5 mm
Size [y]	2.4 m	2.4 m
Size [y]	96 in	96 in
Type	Wire Marker, Tape	Wire Marker, Tape

SDR Series

WIRE MARKER, SCOTCHCODE&TRADE; TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), GREEN

Part	Size [y]	Size [x]	Size [x]	Size [y]	Shelf Life Start	Type	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Legend	Cable Diameter [diameter]	Color	Material
3M SDR-GN	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Green	Polyester
3M SDR-BK	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Black	Polyester
3M SDR-B	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	B	Cut to Desired Diameter	White	Polyester
3M SDR-BN	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Brown	Polyester
3M SDR-K	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	K	Cut to Desired Diameter	White	Polyester
3M SDR-+(PLUS)	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C		Cut to Desired Diameter	White	Polyester
3M SDR-T	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	T	Cut to Desired Diameter	White	Polyester
3M SDR-W	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	W	Cut to Desired Diameter	White	Polyester
3M SDR-L3	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	L3	Cut to Desired Diameter	White	Polyester
3M SDR-G	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	G	Cut to Desired Diameter	White	Polyester
