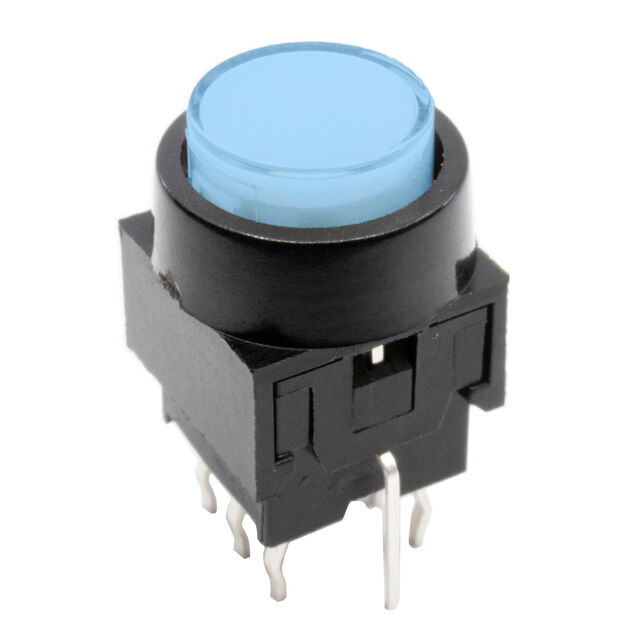

LP4OA1PBBTB

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/30VDC; TRANSPARENT; THT

Deep-Dive with AI

Search across all available documentation for this part.

LP4OA1PBBTB

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/30VDC; TRANSPARENT; THT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP4OA1PBBTB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3.5 VDC
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

LP4OA1 Series

Part	Type	Color - Actuator/Cap	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Illumination Type, Color	Mounting Type	Current Rating (Amps)	Illumination Voltage (Nominal)	Actuator Type	Voltage Rating - DC	Circuit
E-Switch LP4OA1RBATR	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	LED Red	Through Hole Right Angle	100 mA	2.2 VDC	Button Square	30 V	DPDT
E-Switch LP4EE1RBATG	Illuminated Standard	Clear	On-On	PC Pin	-20 C	70 °C	No Marking	Green LED	Through Hole Right Angle	100 mA	2.3 VDC	Button Square	30 V	DPDT
E-Switch LP4OA1PBBTY	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	LED Yellow	Through Hole	100 mA	2.2 VDC	Button Round	30 V	DPDT
E-Switch LP4OA1PBABN	Standard	Blue	On-Mom	PC Pin	-20 C	70 °C	No Marking		Through Hole	100 mA		Button Square	30 V	DPDT
E-Switch LP4OA1PBBTR	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	LED Red	Through Hole	100 mA	2.2 VDC	Button Round	30 V	DPDT
E-Switch LP4OA1PBBTW	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	LED White	Through Hole	100 mA	3.7 VDC	Button Round	30 V	DPDT
E-Switch LP4OA1RBATB	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	Blue LED	Through Hole Right Angle	100 mA	3.5 VDC	Button Square	30 V	DPDT
E-Switch LP4OA1PBBTG	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	Green LED	Through Hole	100 mA	2.3 VDC	Button Round	30 V	DPDT
E-Switch LP4OA1PBCTG	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	Green LED	Through Hole	100 mA	2.3 VDC	Button Round	30 V	DPDT
E-Switch LP4OA1PBBTB	Illuminated Standard	Clear	On-Mom	PC Pin	-20 C	70 °C	No Marking	Blue LED	Through Hole	100 mA	3.5 VDC	Button Round	30 V	DPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4500	$ 2.88

Description

General part information

LP4OA1 Series

Pushbutton Switch DPDT Standard, Illuminated Through Hole
