LP4EE1RBATG

Active

E-Switch

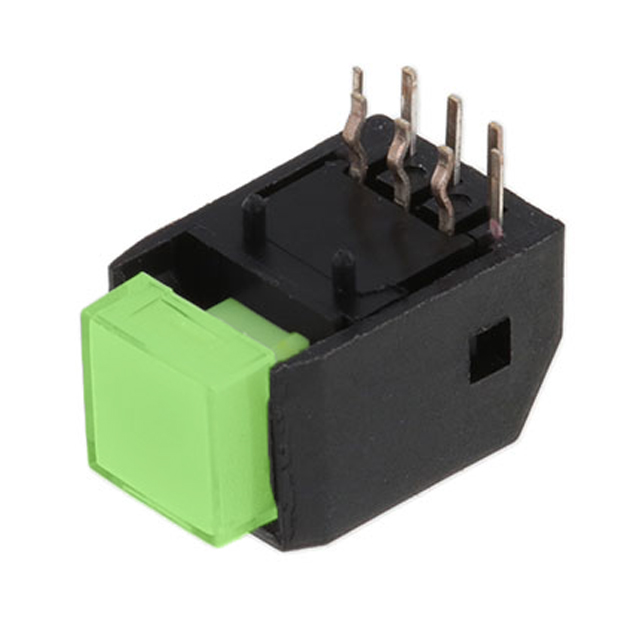

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/30VDC; TRANSPARENT; PCB

Deep-Dive with AI

Search across all available documentation for this part.

LP4EE1RBATG

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; DPDT; 0.1A/30VDC; TRANSPARENT; PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP4EE1RBATG

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.3 VDC
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

LP4EE1 Series

Part	Illumination Type, Color	Termination Style	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Actuator Type	Switch Function	Circuit	Color - Actuator/Cap	Type	Illumination Voltage (Nominal)	Current Rating (Amps)	Voltage Rating - DC
E-Switch LP4EE1RBATG	Green LED	PC Pin	No Marking	-20 C	70 °C	Through Hole Right Angle	Button Square	On-On	DPDT	Clear	Illuminated Standard	2.3 VDC	100 mA	30 V
E-Switch LP4EE1PBAGG	Green LED	PC Pin	No Marking	-20 C	70 °C	Through Hole	Button Square	On-On	DPDT	Green	Illuminated Standard	2.3 VDC	100 mA	30 V
E-Switch LP4EE1PBATB	Blue LED	PC Pin	No Marking	-20 C	70 °C	Through Hole	Button Square	On-On	DPDT	Clear	Illuminated Standard	3.5 VDC	100 mA	30 V
E-Switch LP4EE1RBATW	LED White	PC Pin	No Marking	-20 C	70 °C	Through Hole Right Angle	Button Square	On-On	DPDT	Clear	Illuminated Standard	3.7 VDC	100 mA	30 V
E-Switch LP4EE1PBAYY	LED Yellow	PC Pin	No Marking	-20 C	70 °C	Through Hole	Button Square	On-On	DPDT	Yellow	Illuminated Standard	2.2 VDC	100 mA	30 V
E-Switch LP4EE1PBCTG	Green LED	PC Pin	No Marking	-20 C	70 °C	Through Hole	Button Round	On-On	DPDT	Clear	Illuminated Standard	2.3 VDC	100 mA	30 V
E-Switch LP4EE1PBARR	LED Red	PC Pin	No Marking	-20 C	70 °C	Through Hole	Button Square	On-On	DPDT	Red	Illuminated Standard	2.2 VDC	100 mA	30 V
E-Switch LP4EE1PBCTB	Blue LED	PC Pin	No Marking	-20 C	70 °C	Through Hole	Button Round	On-On	DPDT	Clear	Illuminated Standard	3.5 VDC	100 mA	30 V
E-Switch LP4EE1PBNNR	LED Red	PC Pin	No Marking	-20 C	70 °C	Through Hole	Plunger for Cap	On-On	DPDT		Illuminated Standard	2.2 VDC	100 mA	30 V
E-Switch LP4EE1RBATY	LED Yellow	PC Pin	No Marking	-20 C	70 °C	Through Hole Right Angle	Button Square	On-On	DPDT	Clear	Illuminated Standard	2.2 VDC	100 mA	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4500	$ 2.71

Description

General part information

LP4EE1 Series

Pushbutton Switch DPDT Standard, Illuminated Through Hole, Right Angle
