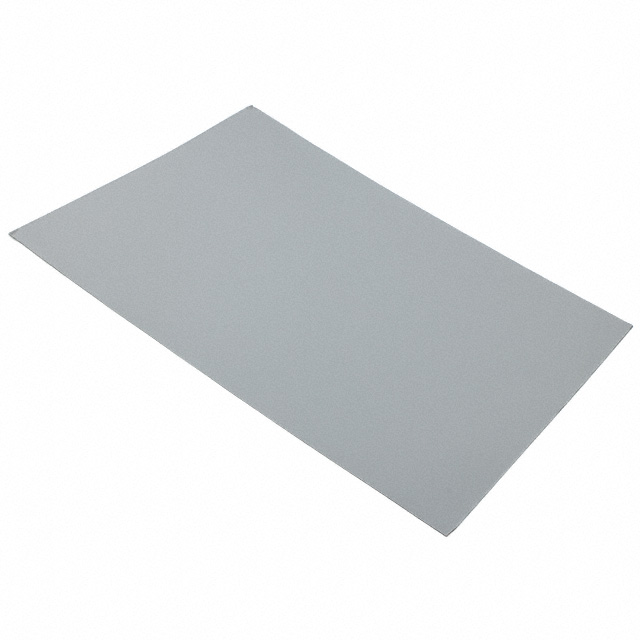

5516S-05

Active

3M (TC)

WX300909586 5516S THERM COND INT PAD .5MIL 230MM X 320MM

Search across all available documentation for this part.

Active

3M (TC)

WX300909586 5516S THERM COND INT PAD .5MIL 230MM X 320MM

Technical Specifications

Parameters and characteristics for this part

Specification	5516S-05

Adhesive	Tacky - Both Sides
Backing, Carrier	Polyethylene-Terephthalate (PET)
Color	Gray
Outline [x]	320 mm
Outline [y]	230 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	25 °C
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	23 °C
Storage/Refrigeration Temperature [Min]	73.4 °F
Thermal Conductivity	3.1 W/m-K
Thickness	0.0197 in
Thickness	0.5 mm
Type	Interface Pad, Sheet

Part	Outline [y]	Outline [x]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Thermal Conductivity	Thickness	Thickness	Shape	Color	Adhesive	Type	Shelf Life Start	Shelf Life
3M (TC) 5516-10	230 mm	320 mm	25 °C	23 °C	73.4 °F	77 °F	Polyethylene-Terephthalate (PET)	3.1 W/m-K	0.991 mm	0.039 in	Rectangular	Gray	Tacky - Both Sides	Interface Pad Sheet	Date of Manufacture	24 Months
3M (TC) 5516S-05	230 mm	320 mm	25 °C	23 °C	73.4 °F	77 °F	Polyethylene-Terephthalate (PET)	3.1 W/m-K	0.5 mm	0.0197 in	Rectangular	Gray	Tacky - Both Sides	Interface Pad Sheet	Date of Manufacture	24 Months
3M (TC) 5516-1.5MM	230 mm	320 mm	25 °C	23 °C	73.4 °F	77 °F	Polyethylene-Terephthalate (PET)	3.1 W/m-K	1.5 mm	0.0591 "	Rectangular	Gray	Tacky - Both Sides	Interface Pad Sheet	Date of Manufacture	24 Months
