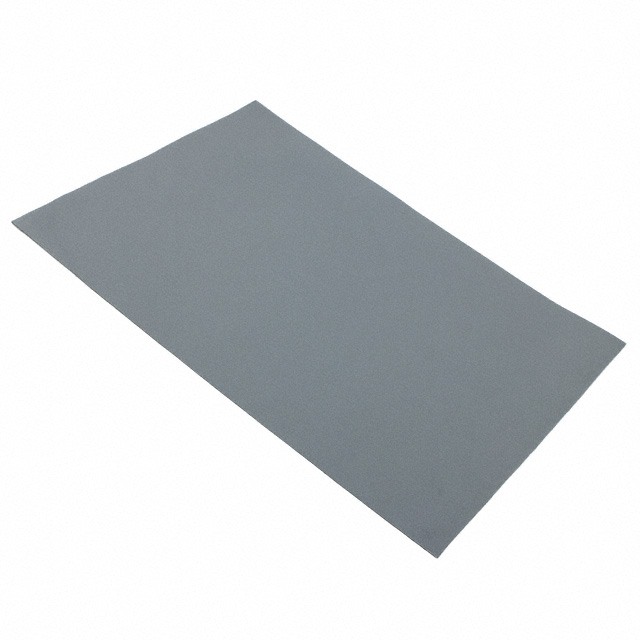

5516-1.5MM

Active

3M (TC)

THERM PAD 320X230MM GRAY

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 320X230MM GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5516-1.5MM

Adhesive	Tacky - Both Sides
Backing, Carrier	Polyethylene-Terephthalate (PET)
Color	Gray
Outline [x]	320 mm
Outline [y]	230 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	25 °C
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	23 °C
Storage/Refrigeration Temperature [Min]	73.4 °F
Thermal Conductivity	3.1 W/m-K
Thickness	1.5 mm
Thickness	0.0591 "
Type	Interface Pad, Sheet

Part	Outline [y]	Outline [x]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Backing, Carrier	Thermal Conductivity	Thickness	Thickness	Shape	Color	Adhesive	Type	Shelf Life Start	Shelf Life
3M (TC) 5516-10	230 mm	320 mm	25 °C	23 °C	73.4 °F	77 °F	Polyethylene-Terephthalate (PET)	3.1 W/m-K	0.991 mm	0.039 in	Rectangular	Gray	Tacky - Both Sides	Interface Pad Sheet	Date of Manufacture	24 Months
3M (TC) 5516S-05	230 mm	320 mm	25 °C	23 °C	73.4 °F	77 °F	Polyethylene-Terephthalate (PET)	3.1 W/m-K	0.5 mm	0.0197 in	Rectangular	Gray	Tacky - Both Sides	Interface Pad Sheet	Date of Manufacture	24 Months
3M (TC) 5516-1.5MM	230 mm	320 mm	25 °C	23 °C	73.4 °F	77 °F	Polyethylene-Terephthalate (PET)	3.1 W/m-K	1.5 mm	0.0591 "	Rectangular	Gray	Tacky - Both Sides	Interface Pad Sheet	Date of Manufacture	24 Months
