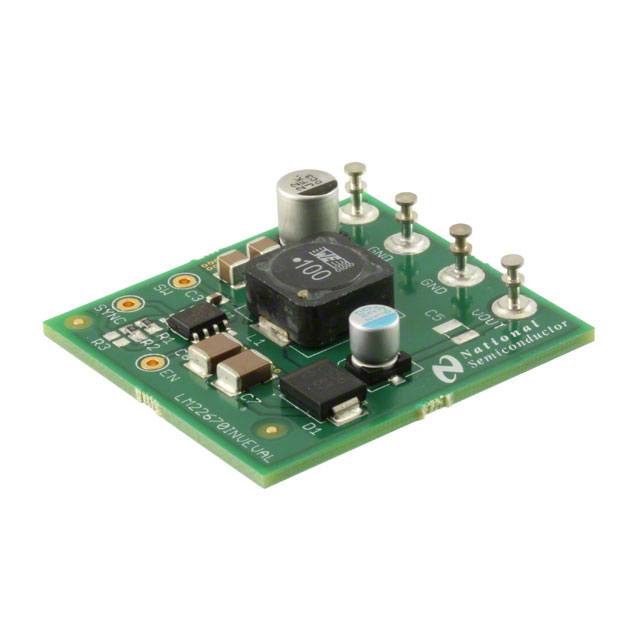

LM22670INVEVAL/NOPB
ActiveEVAL BOARD FOR LM22670INV
Deep-Dive with AI
Search across all available documentation for this part.
LM22670INVEVAL/NOPB
ActiveEVAL BOARD FOR LM22670INV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LM22670INVEVAL/NOPB | LM22670 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1.5 A | 1.5 - 3 A |
| Frequency - Switching | 500 kHz | 500 kHz |
| Function | - | Step-Down |
| Grade | - | Automotive |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 ¯C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Output Type | - | 27.03 °C/W |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | TO-263-7 Thin, 8-PowerSOIC |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | TO-263-7 Thin, 8-SO PowerPad |
| Synchronous Rectifier | - | False |
| Topology | - | Buck |
| Utilized IC / Part | LM22670 | LM22670 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 35 V | 35 V |
| Voltage - Input [Min] | 5 V | 5 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output (Max) | - | 37 V |
| Voltage - Output (Min/Fixed) | - | 1.285 V |
| Voltage - Output (Min/Fixed) | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.00 | |
LM22670 Series
3A SIMPLE SWITCHER, Step-Down Voltage Regulator with Synchronization or Adjustable Switching Freq
| Part | Topology | Current - Output | Synchronous Rectifier | Number of Outputs | Voltage - Input (Max) [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Output Configuration | Voltage - Output (Min/Fixed) [Min] | Supplier Device Package | Frequency - Switching | Grade | Function | Output Type | Qualification | Voltage - Output (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Utilized IC / Part | Board Type | Outputs and Type | Outputs and Type | Main Purpose | Supplied Contents | Output Type | Voltage - Output (Min/Fixed) | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LM22670QTJ-ADJ/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | TO-263-7 Thin | 500 kHz | Automotive | Step-Down | Adjustable | AEC-Q100 | 37 V | 4.5 V | ||||||||||||||
Texas Instruments LM22670INVEVAL/NOPB | 1.5 A | 500 kHz | 5 V | 35 V | 5 V | LM22670 | Fully Populated | Non-Isolated | 1 | DC/DC, Step Down | Board(s) | |||||||||||||||||||||
Texas Instruments LM22670MRX-5.0/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 8-SO PowerPad | 500 kHz | Step-Down | 4.5 V | 27.03 °C/W | 5 V | 3.9 mm | 0.154 in | |||||||||||||||
Texas Instruments LM22670QMRX-ADJ/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | Adjustable | AEC-Q100 | 37 V | 4.5 V | 3.9 mm | 0.154 in | ||||||||||||
Texas Instruments LM22670TJE-5.0/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | TO-263-7 Thin | 500 kHz | Step-Down | 4.5 V | 27.03 °C/W | 5 V | |||||||||||||||||
Texas Instruments LM22670QMRE-5.0/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | AEC-Q100 | 4.5 V | 27.03 °C/W | 5 V | 3.9 mm | 0.154 in | |||||||||||||
Texas Instruments LM22670QMR-5.0/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | AEC-Q100 | 4.5 V | 27.03 °C/W | 5 V | 3.9 mm | 0.154 in | |||||||||||||
Texas Instruments LM22670QTJE-ADJ/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | TO-263-7 Thin | 500 kHz | Automotive | Step-Down | Adjustable | AEC-Q100 | 37 V | 4.5 V | ||||||||||||||
Texas Instruments LM22670MRX-ADJ/J7002408 | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | Adjustable | AEC-Q100 | 37 V | 4.5 V | 3.9 mm | 0.154 in | ||||||||||||
Texas Instruments LM22670TJ-5.0/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | TO-263-7 Thin | 500 kHz | Step-Down | 4.5 V | 27.03 °C/W | 5 V | |||||||||||||||||
Texas Instruments LM22670MRE-5.0/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 8-SO PowerPad | 500 kHz | Step-Down | 4.5 V | 27.03 °C/W | 5 V | 3.9 mm | 0.154 in | |||||||||||||||
Texas Instruments LM22670TJ-ADJ/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | TO-263-7 Thin | 500 kHz | Step-Down | Adjustable | 37 V | 4.5 V | ||||||||||||||||
Texas Instruments LM22670MRX-ADJ/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | 8-SO PowerPad | 500 kHz | Step-Down | Adjustable | 37 V | 4.5 V | 3.9 mm | 0.154 in | ||||||||||||||
Texas Instruments LM22670MR-ADJ/J7002406 | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | Adjustable | AEC-Q100 | 37 V | 4.5 V | 3.9 mm | 0.154 in | ||||||||||||
Texas Instruments LM22670QTJ-5.0/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | TO-263-7 Thin | 500 kHz | Automotive | Step-Down | AEC-Q100 | 4.5 V | 27.03 °C/W | 5 V | |||||||||||||||
Texas Instruments LM22670TJE-ADJ/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | TO-263-7 Thin | 500 kHz | Step-Down | Adjustable | 37 V | 4.5 V | ||||||||||||||||
Texas Instruments LM22670MRE-ADJ/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | 8-SO PowerPad | 500 kHz | Step-Down | Adjustable | 37 V | 4.5 V | 3.9 mm | 0.154 in | ||||||||||||||
Texas Instruments LM22670QTJE-5.0/NOPB | Buck | 3 A | 1 | 42 V | TO-263-7 Thin | 125 ¯C | -40 °C | Surface Mount | Positive | TO-263-7 Thin | 500 kHz | Automotive | Step-Down | AEC-Q100 | 4.5 V | 27.03 °C/W | 5 V | |||||||||||||||
Texas Instruments LM22670QMRX-5.0/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | AEC-Q100 | 4.5 V | 27.03 °C/W | 5 V | 3.9 mm | 0.154 in | |||||||||||||
Texas Instruments LM22670MR-5.0/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 8-SO PowerPad | 500 kHz | Step-Down | 4.5 V | 27.03 °C/W | 5 V | 3.9 mm | 0.154 in | |||||||||||||||
Texas Instruments LM22670QMRE-ADJ/NOPB | Buck | 3 A | 1 | 42 V | 8-PowerSOIC | 125 ¯C | -40 °C | Surface Mount | Positive | 1.285 V | 8-SO PowerPad | 500 kHz | Automotive | Step-Down | Adjustable | AEC-Q100 | 37 V | 4.5 V | 3.9 mm | 0.154 in |
Description
General part information
LM22670 Series
The LM22670 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. The default switching frequency is set at 500 kHz allowing for small external components and good transient response. In addition, the frequency can be adjusted over a range of 200 kHz to 1 MHz with a single external resistor. The internal oscillator can be synchronized to a system clock or to the oscillator of another regulator. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22670 device also has built-in thermal shutdown, and current limiting to protect against accidental overloads.
The LM22670 device is a member of Texas Instruments’ SIMPLE SWITCHER®family. The SIMPLE SWITCHER®concept provides for an easy to use complete design using a minimum number of external components and the TI WEBENCH®design tool. TI's WEBENCH®tool includes features such as external component calculation, electrical simulation, thermal simulation, and build-It boards for easy design-in.
The LM22670 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down (buck) regulator using a minimum of external components. This easy to use regulator incorporates a 42 V N-channel MOSFET switch capable of providing up to 3 A of load current. Excellent line and load regulation along with high efficiency (> 90%) are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5 V output and adjustable output voltage options are available. The default switching frequency is set at 500 kHz allowing for small external components and good transient response. In addition, the frequency can be adjusted over a range of 200 kHz to 1 MHz with a single external resistor. The internal oscillator can be synchronized to a system clock or to the oscillator of another regulator. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA (typ). Built in soft-start (500 µs, typ) saves external components. The LM22670 device also has built-in thermal shutdown, and current limiting to protect against accidental overloads.
