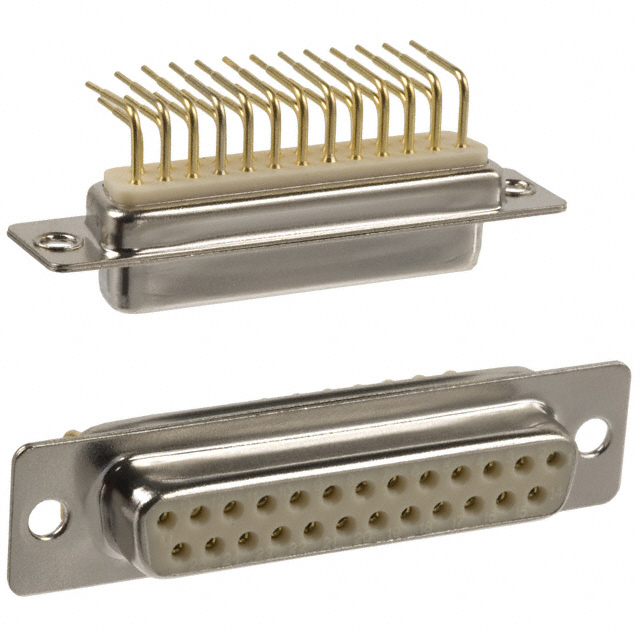

Specification	174-E25-213R001

Backset Spacing	0.37 in
Color	White
Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	25
Number of Rows	2
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	3
Termination	Solder

174-E25 Series

Part	Contact Finish Thickness (string set options)	Contact Finish Thickness	Mounting Type	Number of Rows	Termination	Flange Feature	Number of Positions	Finish	Shell Material	Contact Type	Connector Style	Contact Finish	Material Flammability Rating	Shell Size	Connector Layout	Backset Spacing	Features	Current Rating	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Color	Contact Form	Contact Material
NorComp Inc. 174-E25-111R241	Flash	Flash	Panel Mount Right Angle Through Hole	2	Solder	Mating Side Standard Screws (4-40)	25	Yellow Chromate Plated	Steel	Signal	D-Sub	Gold	UL94 V-0	3	B DB	0.37 in	Mounting Brackets	5 A	Male Pins Plug	-50 °C	100 °C	Nylon 6T Polyamide (PA6T)	White	Machined	Brass
NorComp Inc. 174-E25-213R141	Flash	Flash	Panel Mount Right Angle Through Hole	2	Solder	Female Screwlock (4-40) Mating Side	25	Nickel Plated	Steel	Signal	D-Sub	Gold	UL94 V-0	3	B DB	0.37 in	Mounting Brackets	5 A	Female Sockets Receptacle	-50 °C	100 °C	Nylon 6T Polyamide (PA6T)	White	Machined	Brass
NorComp Inc. 174-E25-111R141	Flash	Flash	Panel Mount Right Angle Through Hole	2	Solder	Female Screwlock (4-40) Mating Side	25	Yellow Chromate Plated	Steel	Signal	D-Sub	Gold	UL94 V-0	3	B DB	0.37 in	Mounting Brackets	5 A	Male Pins Plug	-50 °C	100 °C	Nylon 6T Polyamide (PA6T)	White	Machined
NorComp Inc. 174-E25-213R001	Flash	Flash	Panel Mount Right Angle Through Hole	2	Solder	Housing Shell (Unthreaded)	25	Nickel Plated	Steel	Signal	D-Sub	Gold	UL94 V-0	3	B DB	0.37 in		5 A	Female Sockets Receptacle	-50 °C	100 °C	Nylon 6T Polyamide (PA6T)	White	Machined	Brass
NorComp Inc. 174-E25-113R461	Flash	Flash	Panel Mount Right Angle Through Hole	2	Solder	Housing Shell (4-40)	25	Nickel Plated	Steel	Signal	D-Sub	Gold	UL94 V-0	3	B DB	0.37 in	Board Lock Grounding Indents Mounting Brackets	5 A	Male Pins Plug	-50 °C	100 °C	Nylon 6T Polyamide (PA6T)	White	Machined	Brass
NorComp Inc. 174-E25-211R241	Flash	Flash	Panel Mount Right Angle Through Hole	2	Solder	Mating Side Standard Screws (4-40)	25	Yellow Chromate Plated	Steel	Signal	D-Sub	Gold	UL94 V-0	3	B DB	0.37 in	Mounting Brackets	5 A	Female Sockets Receptacle	-50 °C	100 °C	Nylon 6T Polyamide (PA6T)	White	Machined	Brass
