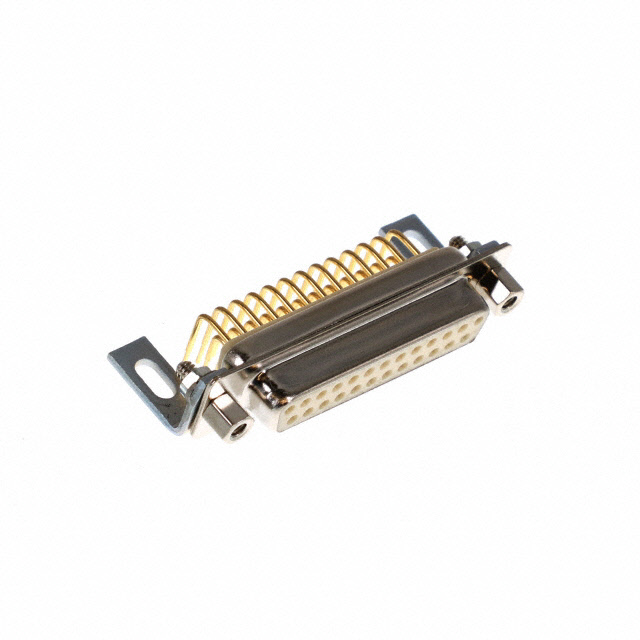

D SUB CONNECTOR, DB25, STANDARD, RECEPTACLE, 174-E M SERIES, 25 CONTACTS, DB, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
174-E25-213R141
ActiveMH Connectors
D SUB CONNECTOR, DB25, STANDARD, RECEPTACLE, 174-E M SERIES, 25 CONTACTS, DB, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 174-E25-213R141 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
174-E25 Series
| Part | Flange Feature | Material Flammability Rating | Contact Type | Number of Rows | Contact Finish Thickness | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Current Rating (Amps) | Color | Contact Finish | Mounting Type | Dielectric Material | Backset Spacing | Backset Spacing | Shell Material, Finish | Contact Material | Features | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Mating Side Standard Screws (4-40) | UL94 V-0 | Signal | 2 | Flash | Male Pins Plug | B DB | 3 | Solder | 5 A | White | Gold | Panel Mount Right Angle Through Hole | Polyamide (PA6T) Nylon 6T | 9.4 mm | 0.37 in | Steel Yellow Chromate Plated | Brass | Mounting Brackets | D-Sub |
MH Connectors | Female Screwlock (4-40) Mating Side | UL94 V-0 | Signal | 2 | Flash | Receptacle Female Sockets | B DB | 3 | Solder | 5 A | White | Gold | Panel Mount Right Angle Through Hole | Polyamide (PA6T) Nylon 6T | 9.4 mm | 0.37 in | Nickel Plated Steel | Brass | Mounting Brackets | D-Sub |
MH Connectors | Housing/Shell (Unthreaded) | UL94 V-0 | Signal | 2 | Flash | Receptacle Female Sockets | B DB | 3 | Solder | 5 A | White | Gold | Panel Mount Right Angle Through Hole | Polyamide (PA6T) Nylon 6T | 9.4 mm | 0.37 in | Nickel Plated Steel | Brass | D-Sub | |
MH Connectors | Housing/Shell (4-40) | UL94 V-0 | Signal | 2 | Flash | Male Pins Plug | B DB | 3 | Solder | 5 A | White | Gold | Panel Mount Right Angle Through Hole | Polyamide (PA6T) Nylon 6T | 9.4 mm | 0.37 in | Nickel Plated Steel | Brass | Board Lock Grounding Indents Mounting Brackets | D-Sub |
MH Connectors | Mating Side Standard Screws (4-40) | UL94 V-0 | Signal | 2 | Flash | Receptacle Female Sockets | B DB | 3 | Solder | 5 A | White | Gold | Panel Mount Right Angle Through Hole | Polyamide (PA6T) Nylon 6T | 9.4 mm | 0.37 in | Steel Yellow Chromate Plated | Brass | Mounting Brackets | D-Sub |
