17-200331

Active

Amphenol CONEC

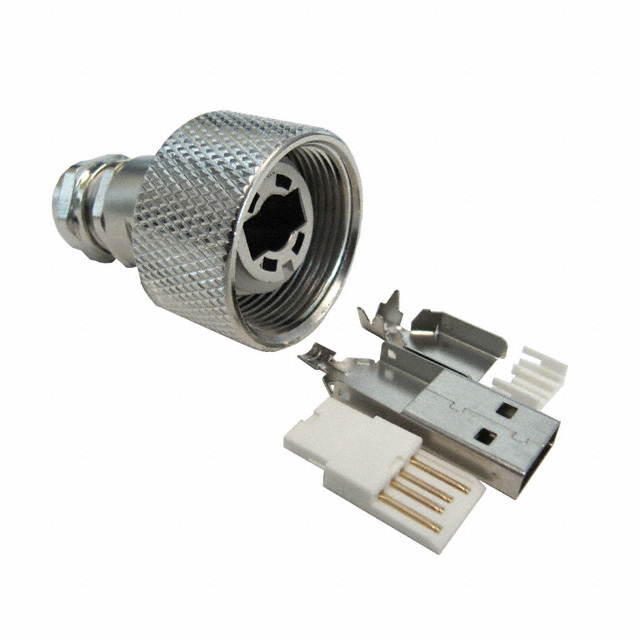

CONN PLUG USB2.0 TYPEA 4POS SLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG USB2.0 TYPEA 4POS SLD

Technical Specifications

Parameters and characteristics for this part

Specification	17-200331

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Circular Threaded Coupling
Gender	Plug
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Steel
Shielding	Shielded
Specifications	USB 2.0
Voltage - Rated	30 V

Part	Wire Gauge	Shielding	Length	Length [x]	Transfer Rate	Configuration	Features	Specifications	Color	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Length [x]	Contact Finish	Current Rating (Amps)	Number of Ports	Ingress Protection	Connector Type	Shell/Shielding Material	Voltage - Rated	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Gender
Amphenol CONEC 17-200311	24 AWG 28 AWG	Shielded	4.5 m	14.76 '	480 Mbps	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments - IP67	USB 2.0	Black
Amphenol CONEC 17-200321										USB-A (USB TYPE-A) Receptacle	Bulkhead Panel Mount	Receptacle USB-A (USB TYPE-A)
Amphenol CONEC 17-200391	24 AWG 28 AWG	Shielded	4.5 m	14.76 '	480 Mbps	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments	USB 2.0	Black
Amphenol CONEC 17-200351	24 AWG 28 AWG	Shielded		9.84 ft	480 Mbps	A Male to B Male	Data Transfer and Charge Industrial Environments	USB 2.0	Black				3 m
Amphenol CONEC 17-200331		Shielded					Circular Threaded Coupling	USB 2.0			Free Hanging (In-Line)			Gold	1.5 A	1	IP67 - Dust Tight Waterproof	USB-A (USB TYPE-A)	Steel	30 V	UL94 V-0	85 °C	-40 °C	4	Plug
Amphenol CONEC 17-200381	24 AWG 28 AWG	Shielded		9.84 ft	480 Mbps	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments	USB 2.0	Black				3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Free Hanging (In-Line)
