17-200391

Active

Amphenol CONEC

CBL USB2.0 A PLUG-A PLUG W/COUPL

Search across all available documentation for this part.

Active

Amphenol CONEC

CBL USB2.0 A PLUG-A PLUG W/COUPL

Technical Specifications

Parameters and characteristics for this part

Specification	17-200391

Color	Black
Configuration	A Male to A Male (Circular Coupling)
Features	Industrial Environments, Data Transfer and Charge
Length	4.5 m
Length [x]	14.76 '
Shielding	Shielded
Specifications	USB 2.0
Transfer Rate	480 Mbps
Wire Gauge	28 AWG, 24 AWG

Part	Wire Gauge	Shielding	Length	Length [x]	Transfer Rate	Configuration	Features	Specifications	Color	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)	Length [x]	Contact Finish	Current Rating (Amps)	Number of Ports	Ingress Protection	Connector Type	Shell/Shielding Material	Voltage - Rated	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Gender
Amphenol CONEC 17-200311	24 AWG 28 AWG	Shielded	4.5 m	14.76 '	480 Mbps	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments - IP67	USB 2.0	Black
Amphenol CONEC 17-200321										USB-A (USB TYPE-A) Receptacle	Bulkhead Panel Mount	Receptacle USB-A (USB TYPE-A)
Amphenol CONEC 17-200391	24 AWG 28 AWG	Shielded	4.5 m	14.76 '	480 Mbps	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments	USB 2.0	Black
Amphenol CONEC 17-200351	24 AWG 28 AWG	Shielded		9.84 ft	480 Mbps	A Male to B Male	Data Transfer and Charge Industrial Environments	USB 2.0	Black				3 m
Amphenol CONEC 17-200331		Shielded					Circular Threaded Coupling	USB 2.0			Free Hanging (In-Line)			Gold	1.5 A	1	IP67 - Dust Tight Waterproof	USB-A (USB TYPE-A)	Steel	30 V	UL94 V-0	85 °C	-40 °C	4	Plug
Amphenol CONEC 17-200381	24 AWG 28 AWG	Shielded		9.84 ft	480 Mbps	A Male to A Male (Circular Coupling)	Data Transfer and Charge Industrial Environments	USB 2.0	Black				3 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

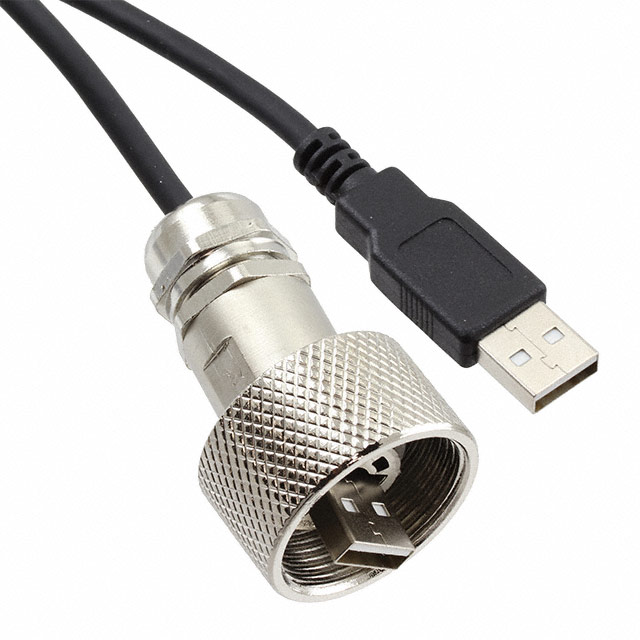

USB 2.0 Cable A Male to A Male (Circular Coupling) 14.76' (4.50m) Shielded
