122503
ActiveAmphenol RF

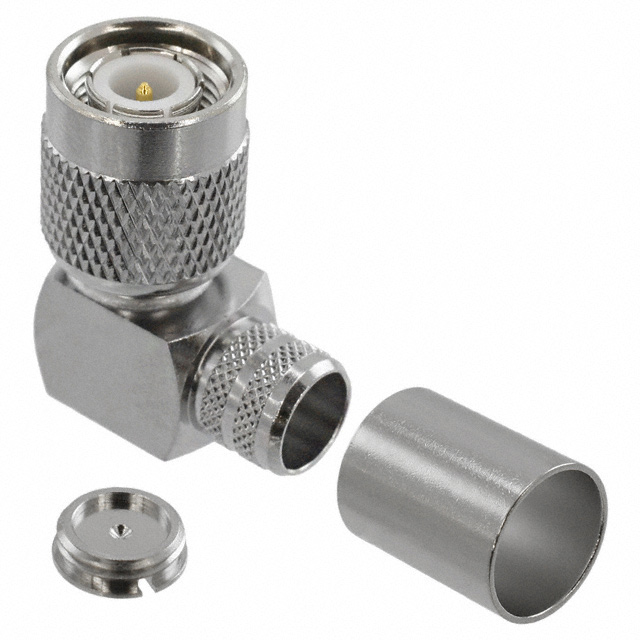

CONN TNC PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
122503
ActiveAmphenol RF
CONN TNC PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 122503 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Connector, 1 Ferrule, 1 End Cap |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 11.24 | |
| 10 | $ 10.12 | |||
| 25 | $ 9.53 | |||
| 50 | $ 9.28 | |||
| 100 | $ 9.04 | |||
| 300 | $ 8.06 | |||
| 500 | $ 7.57 | |||
| 1000 | $ 6.69 | |||
Description
General part information
1225 Series
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Documents
Technical documentation and resources
No documents available
