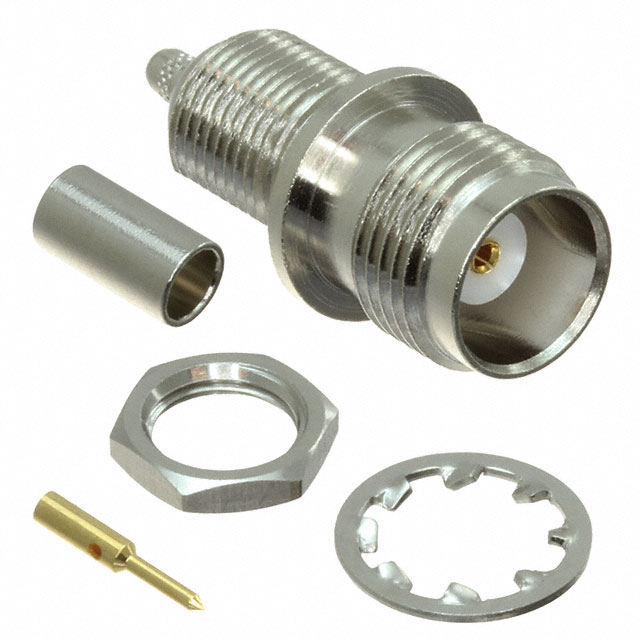

CONN TNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	122501

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179, M17/152-RD316, 316 Double Braid, 188
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Frequency - Max [Max]	Body Material	Housing Color	Shield Termination	Center Contact Plating	Contact Termination	Connector Type	Voltage Rating	Includes	Impedance	Mounting Feature	Body Finish	Number of Ports	Mating Cycles	Center Contact Material	Dielectric Material	Cable Group	Connector Style	Mounting Type
Amphenol RF 122501	11 GHz	Brass	Silver	Crimp	Gold	Solder	Female Socket Jack	500 V	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	50 Ohms	Bulkhead - Rear Side Nut	Nickel	1	500	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	188 316 Double Braid M17/152-RD316 RG-179	TNC
Amphenol RF 122503	11 GHz	Brass	Silver	Crimp	Gold	Solder	Male Pin Plug	500 V	1 Connector 1 End Cap 1 Ferrule	50 Ohms		Nickel	1	500	Brass	Polytetrafluoroethylene (PTFE)	213 214 225 302 393 87 8A 9 9A 9B RG-8	TNC	Free Hanging (In-Line) Right Angle
Amphenol RF 122502	11 GHz	Brass	Silver	Crimp	Gold	Solder	Male Pin Plug	500 V	1 Connector 1 End Cap 1 Ferrule	50 Ohms		Nickel	1	500	Brass	Polytetrafluoroethylene (PTFE)	213 214 225 302 393 87 8A 9 9A 9B RG-8	TNC	Free Hanging (In-Line) Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
