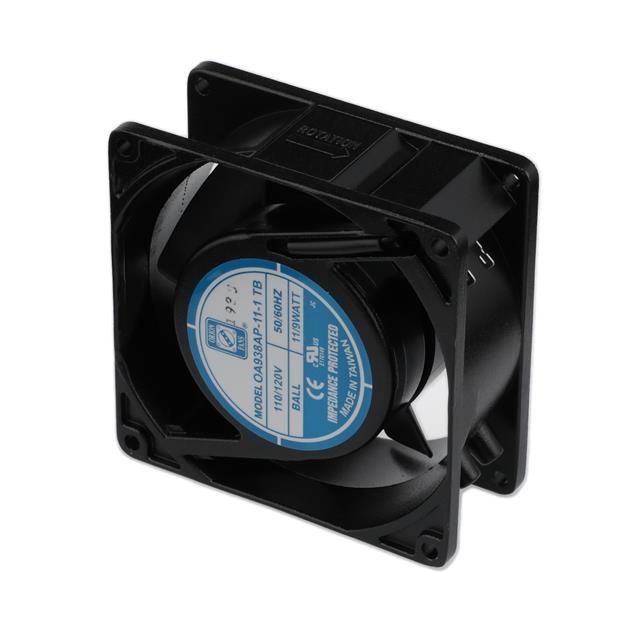

OA938AP-11-1TB

Active

Orion Fans

AC AXIAL FAN, 115V, SQUARE, 92 MM, 38 MM, BALL BEARING, 50 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN

OA938AP-11-1TB

Active

Orion Fans

AC AXIAL FAN, 115V, SQUARE, 92 MM, 38 MM, BALL BEARING, 50 CFM

Deep-Dive with AI

DocumentsMiscellaneous EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA938AP-11-1TB

Air Flow	1.4 m³/min
Air Flow	50 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	32 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	9 W
RPM	3100 RPM
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	80 VAC
Weight	449.96 g
Weight	0.992 lb
Width [y]	38.5 mm

OA938AP Series

Part	Voltage - Rated	Bearing Type	Lifetime @ Temp.	Ingress Protection	Static Pressure	Static Pressure	Fan Type	Power (Watts)	Approval Agency	Termination	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Noise	Material - Blade	RPM	Weight	Weight	Material - Frame	Width [y]	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Features
Orion Fans OA938AP-11-1WB1855	115 VAC	Ball	50000 Hrs	IP55 - Dust Protected Water Resistant	0.22 in H2O	54.8 Pa	Tubeaxial	15 W	cURus TUV	2 Wire Leads	55 CFM	1.54 mł/min	120 VAC	100 VAC	40 dB(A)	Metal	3150 RPM	499 g	1.1 lbs	Aluminum	38 mm
Orion Fans OA938AP-11/22-1WB		Ball	60000 Hrs		0.22 in H2O	54.8 Pa	Tubeaxial	9 W	cURus TUV	4 Wire Leads		50 CFM	240 VAC	100 VAC	32 dB	Polybutylene Terephthalate (PBT)	3100 RPM			Aluminum	38.5 mm	1.4 m³/min	80 C	80 °C	-20 °C	-20 C	230 VAC	115 VAC	Dual Voltage
Orion Fans OA938AP-22-1WB1855	230 VAC	Ball	50000 Hrs	IP55 - Dust Protected Water Resistant	0.22 in H2O	54.8 Pa	Tubeaxial	15 W	cURus TUV	2 Wire Leads	55 CFM	1.54 mł/min			40 dB(A)	Metal	3150 RPM	499 g	1.1 lbs	Aluminum	38 mm
Orion Fans OA938AP-11-2TB	115 VAC	Ball	60000 Hrs		0.17 in H2O	42.3 Pa	Tubeaxial	5 W	cURus TUV	2 Terminals	39 CFM	1.09 m³/min	130 VAC	80 VAC	23 dB(A)	Polybutylene Terephthalate (PBT)	2400 RPM	449.96 g	0.992 lb	Aluminum	38.5 mm		80 C	80 °C	-20 °C	-20 C
Orion Fans OA938AP-11-1WB	115 VAC	Ball	60000 Hrs		0.22 in H2O	54.8 Pa	Tubeaxial	9 W	cURus TUV	2 Wire Leads		50 CFM	130 VAC	80 VAC	32 dB	Polybutylene Terephthalate (PBT)	3100 RPM	449.96 g	0.992 lb	Aluminum	38.5 mm	1.4 m³/min	80 C	80 °C	-20 °C	-20 C
Orion Fans OA938AP-22-1WB	230 VAC	Ball	60000 Hrs		0.22 in H2O	54.8 Pa	Tubeaxial	9 W	cURus TUV	2 Wire Leads	50 CFM	1.4 mł/min	260 VAC	160 VAC	32 dB	Polybutylene Terephthalate (PBT)	3100 RPM	449.96 g	0.992 lb	Aluminum	38.5 mm		80 C	80 °C	-20 °C	-20 C
Orion Fans OA938AP-22-1TB1855	230 VAC	Ball	50000 Hrs	IP55 - Dust Protected Water Resistant	0.22 in H2O	54.8 Pa	Tubeaxial	15 W	cURus TUV	2 Terminals	55 CFM	1.54 mł/min			40 dB(A)	Metal	3150 RPM	499 g	1.1 lbs	Aluminum	38 mm
Orion Fans OA938AP-11-1TB	115 VAC	Ball	60000 Hrs		0.22 in H2O	54.8 Pa	Tubeaxial	9 W	cURus TUV	2 Terminals		50 CFM	130 VAC	80 VAC	32 dB	Polybutylene Terephthalate (PBT)	3100 RPM	449.96 g	0.992 lb	Aluminum	38.5 mm	1.4 m³/min	80 C	80 °C	-20 °C	-20 C
Orion Fans OA938AP-22-1TB	230 VAC	Ball	60000 Hrs		0.22 in H2O	54.8 Pa	Tubeaxial	9 W	cURus TUV	2 Terminals		50 CFM	260 VAC	160 VAC	32 dB	Polybutylene Terephthalate (PBT)	3100 RPM	449.96 g	0.992 lb	Aluminum	38.5 mm	1.4 m³/min	80 C	80 °C	-20 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.54
		10	$ 20.59
		40	$ 19.80
		80	$ 18.50
		120	$ 17.07
		280	$ 16.81
		520	$ 16.68
Newark	Each	1	$ 24.39
		5	$ 23.74
		10	$ 22.84
		25	$ 21.42
		50	$ 20.00
		100	$ 18.58

Description

General part information

OA938AP Series

Fan Tubeaxial 115VAC Square - 92mm L x 92mm H Ball 50.0 CFM (1.40m³/min) 2 Terminals

Documents

Technical documentation and resources

Miscellaneous EN

Datasheet
