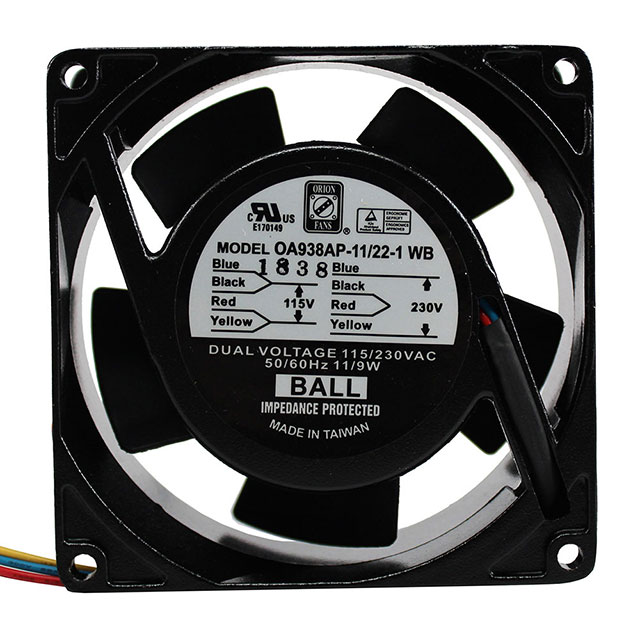

OA938AP-11/22-1WB
ActiveOrion Fans
FAN AXIAL 92X38.5MM 115/230VAC
Deep-Dive with AI
Search across all available documentation for this part.
OA938AP-11/22-1WB
ActiveOrion Fans
FAN AXIAL 92X38.5MM 115/230VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA938AP-11/22-1WB |
|---|---|
| Air Flow | 1.4 m³/min |
| Air Flow | 50 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 32 dB |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 9 W |
| RPM | 3100 RPM |
| Static Pressure | 0.22 in H2O |
| Static Pressure | 54.8 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [Max] | 230 VAC |
| Voltage - Rated [Min] | 115 VAC |
| Voltage Range [Max] | 240 VAC |
| Voltage Range [Min] | 100 VAC |
| Width [y] | 38.5 mm |
OA938AP Series
| Part | Voltage - Rated | Bearing Type | Lifetime @ Temp. | Ingress Protection | Static Pressure | Static Pressure | Fan Type | Power (Watts) | Approval Agency | Termination | Air Flow | Air Flow | Voltage Range [Max] | Voltage Range [Min] | Noise | Material - Blade | RPM | Weight | Weight | Material - Frame | Width [y] | Air Flow | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Voltage - Rated [Max] | Voltage - Rated [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Orion Fans | 115 VAC | Ball | 50000 Hrs | IP55 - Dust Protected Water Resistant | 0.22 in H2O | 54.8 Pa | Tubeaxial | 15 W | cURus TUV | 2 Wire Leads | 55 CFM | 1.54 mł/min | 120 VAC | 100 VAC | 40 dB(A) | Metal | 3150 RPM | 499 g | 1.1 lbs | Aluminum | 38 mm | ||||||||
Orion Fans | Ball | 60000 Hrs | 0.22 in H2O | 54.8 Pa | Tubeaxial | 9 W | cURus TUV | 4 Wire Leads | 50 CFM | 240 VAC | 100 VAC | 32 dB | Polybutylene Terephthalate (PBT) | 3100 RPM | Aluminum | 38.5 mm | 1.4 m³/min | 80 C | 80 °C | -20 °C | -20 C | 230 VAC | 115 VAC | Dual Voltage | |||||
Orion Fans | 230 VAC | Ball | 50000 Hrs | IP55 - Dust Protected Water Resistant | 0.22 in H2O | 54.8 Pa | Tubeaxial | 15 W | cURus TUV | 2 Wire Leads | 55 CFM | 1.54 mł/min | 40 dB(A) | Metal | 3150 RPM | 499 g | 1.1 lbs | Aluminum | 38 mm | ||||||||||
Orion Fans | 115 VAC | Ball | 60000 Hrs | 0.17 in H2O | 42.3 Pa | Tubeaxial | 5 W | cURus TUV | 2 Terminals | 39 CFM | 1.09 m³/min | 130 VAC | 80 VAC | 23 dB(A) | Polybutylene Terephthalate (PBT) | 2400 RPM | 449.96 g | 0.992 lb | Aluminum | 38.5 mm | 80 C | 80 °C | -20 °C | -20 C | |||||
Orion Fans | 115 VAC | Ball | 60000 Hrs | 0.22 in H2O | 54.8 Pa | Tubeaxial | 9 W | cURus TUV | 2 Wire Leads | 50 CFM | 130 VAC | 80 VAC | 32 dB | Polybutylene Terephthalate (PBT) | 3100 RPM | 449.96 g | 0.992 lb | Aluminum | 38.5 mm | 1.4 m³/min | 80 C | 80 °C | -20 °C | -20 C | |||||
Orion Fans | 230 VAC | Ball | 60000 Hrs | 0.22 in H2O | 54.8 Pa | Tubeaxial | 9 W | cURus TUV | 2 Wire Leads | 50 CFM | 1.4 mł/min | 260 VAC | 160 VAC | 32 dB | Polybutylene Terephthalate (PBT) | 3100 RPM | 449.96 g | 0.992 lb | Aluminum | 38.5 mm | 80 C | 80 °C | -20 °C | -20 C | |||||
Orion Fans | 230 VAC | Ball | 50000 Hrs | IP55 - Dust Protected Water Resistant | 0.22 in H2O | 54.8 Pa | Tubeaxial | 15 W | cURus TUV | 2 Terminals | 55 CFM | 1.54 mł/min | 40 dB(A) | Metal | 3150 RPM | 499 g | 1.1 lbs | Aluminum | 38 mm | ||||||||||
Orion Fans | 115 VAC | Ball | 60000 Hrs | 0.22 in H2O | 54.8 Pa | Tubeaxial | 9 W | cURus TUV | 2 Terminals | 50 CFM | 130 VAC | 80 VAC | 32 dB | Polybutylene Terephthalate (PBT) | 3100 RPM | 449.96 g | 0.992 lb | Aluminum | 38.5 mm | 1.4 m³/min | 80 C | 80 °C | -20 °C | -20 C | |||||
Orion Fans | 230 VAC | Ball | 60000 Hrs | 0.22 in H2O | 54.8 Pa | Tubeaxial | 9 W | cURus TUV | 2 Terminals | 50 CFM | 260 VAC | 160 VAC | 32 dB | Polybutylene Terephthalate (PBT) | 3100 RPM | 449.96 g | 0.992 lb | Aluminum | 38.5 mm | 1.4 m³/min | 80 C | 80 °C | -20 °C | -20 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.32 | |
| 10 | $ 22.21 | |||
| 40 | $ 21.37 | |||
| 80 | $ 19.96 | |||
| 120 | $ 18.42 | |||
| 280 | $ 18.14 | |||
| 520 | $ 18.00 | |||
Description
General part information
OA938AP Series
Fan Tubeaxial 115/230VAC Square - 92mm L x 92mm H Ball 50.0 CFM (1.40m³/min) 4 Wire Leads
