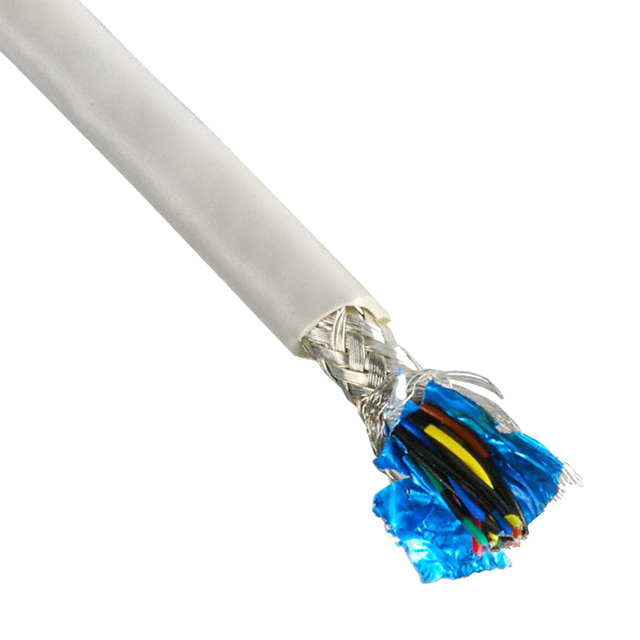

MULTIPAIR CABLE, DISCRETE WIRE, SHIELDED, 10 PAIR, 28 AWG, 100 FT, 30.48 M
Deep-Dive with AI
Search across all available documentation for this part.
3600B/20 100
Active3M (TC)
MULTIPAIR CABLE, DISCRETE WIRE, SHIELDED, 10 PAIR, 28 AWG, 100 FT, 30.48 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3600B/20 100 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 36 AWG |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 0.24 in |
| Jacket (Insulation) Diameter [diameter] | 6.1 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.026 in |
| Jacket (Insulation) Thickness | 0.66 mm |
| Jacket Color | Beige |
| Length | 1 ft, 10 ft |
| Length | 300 mm, 3.05 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 20 |
| Shield Coverage | 90 %, 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Communication, Computer, Control |
| Voltage | 30 V |
| Wire Gauge | 28 AWG |
3600B Series
| Part | Conductor Material | Usage | Length [x] | Length [x] | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Length | Length | Cable Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Insulation | Jacket (Insulation) Material | Number of Conductors | Shield Coverage | Features | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Length | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Copper Tinned | Communication Computer Control | 7.62 m 30.5 m | 25 ft 100 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | 1 ft 10 ft | 3.05 m 300 mm | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 9.91 mm | 0.39 in | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 | 90 % 100 % | |||||
3M (TC) | Copper Tinned | Communication Computer Control | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 6.35 mm | 0.25 " | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 26 | 90 % 100 % | Splice Free | ||||||||
3M (TC) | Copper Tinned | Communication Computer Control | 7.62 m 30.5 m | 25 ft 100 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | 5 ' 10 ft | 1.52 m 3.05 m | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 6.1 mm | 0.24 in | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 20 | 90 % 100 % | |||||
3M (TC) | Copper Tinned | Communication Computer Control | 61 m | 200 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 100 | 90 % 100 % | 0.44 in | 11.18 mm | |||||||
3M (TC) | Copper Tinned | Communication Computer Control | 7.62 m | 25 ft 50 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | 10 ft | 3.05 m 15.24 m | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 9.14 mm | 0.36 " | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 68 | 90 % 100 % | |||||
3M (TC) | Copper Tinned | Communication Computer Control | 7.62 m 30.5 m | 25 ft 50 ft 100 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | 1 ft 5 ' | 1.52 m 15.24 m 300 mm | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 6.35 mm | 0.25 " | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 26 | 90 % 100 % | |||||
3M (TC) | Copper Tinned | Communication Computer Control | 30.5 m | 100 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | 1 ft 10 ft | 3.05 m 300 mm | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 6.1 mm | 0.24 in | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 20 | 90 % 100 % | |||||
3M (TC) | Copper Tinned | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 36 | 90 % 100 % | Splice Free | |||||||||||
3M (TC) | Copper Tinned | Communication Computer Control | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | 300 ft | 91.4 m | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 9.14 mm | 0.36 " | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 68 | 90 % 100 % | |||||||
3M (TC) | Copper Tinned | Communication Computer Control | 7.62 m 30.5 m | 25 ft 100 ft | Aluminum Copper Tinned | 0.026 in | 0.66 mm | Beige | Multi-Pair | 28 AWG | 36 AWG | 7 | Braid Foil | 30 V | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 36 | 90 % 100 % | Splice Free | Enter Number of Feet in Order Quantity | 26 37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.25 | |
| 1 | $ 62.49 | |||
| 10 | $ 39.76 | |||
| 10 | $ 3.98 | |||
| 25 | $ 3.41 | |||
| 25 | $ 34.08 | |||
| 50 | $ 3.18 | |||
| 50 | $ 31.81 | |||
| Spool | 1 | $ 291.94 | ||
| 3 | $ 270.08 | |||
| 5 | $ 260.71 | |||
| 7 | $ 254.47 | |||
| 10 | $ 248.23 | |||
| 25 | $ 232.61 | |||
Description
General part information
3600B Series
3600B/20 is a 3600X series 28AWG stranded, twisted pair, PVC/PVC, round, shielded/jacketed, disc wire cable. Meets external wiring requirements of National Electrical Code, Article 725 (CL2). Dual shielding with aluminum film foil and copper braid provides excellent EMI/ESD protection. Twisted pairs reduce crosstalk for balanced drive applications.
