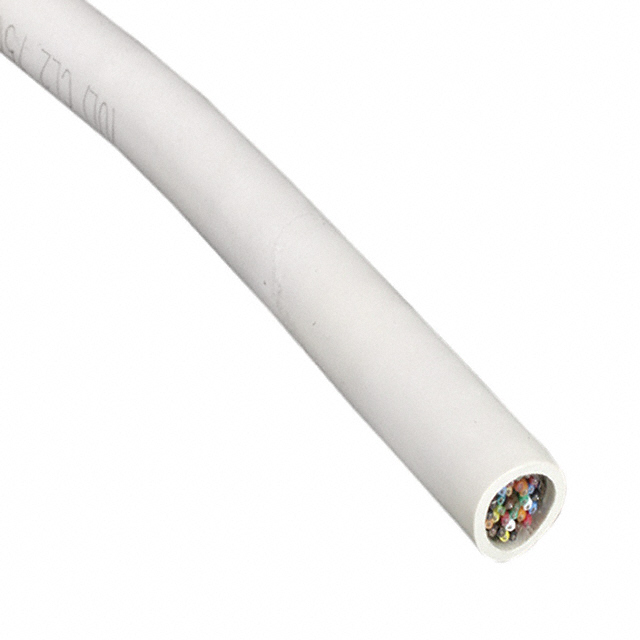

3600B/36 100SF

Active

3M (TC)

MULTI-PAIR 36CON 28AWG BEI 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3600B/36 100SF

Active

3M (TC)

MULTI-PAIR 36CON 28AWG BEI 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3600B/36 100SF

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	37, 26
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Splice Free
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.026 in
Jacket (Insulation) Thickness	0.66 mm
Jacket Color	Beige
Length	Enter Number of Feet in Order Quantity
Length [x]	25 ft, 100 ft
Length [x]	7.62 m, 30.5 m
Number of Conductors	36
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Communication, Computer, Control
Voltage	30 V
Wire Gauge	28 AWG

3600B Series

Part	Conductor Material	Usage	Length [x]	Length [x]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Length	Length	Cable Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Insulation	Jacket (Insulation) Material	Number of Conductors	Shield Coverage	Features	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Length	Conductor Strand
3M (TC) 3600B/80 100	Copper Tinned	Communication Computer Control	7.62 m 30.5 m	25 ft 100 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige	1 ft 10 ft	3.05 m 300 mm	Multi-Pair	28 AWG	36 AWG	7	Braid Foil	9.91 mm	0.39 in	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	80	90 % 100 %
3M (TC) 3600B/26SF	Copper Tinned	Communication Computer Control			Aluminum Copper Tinned	0.026 in	0.66 mm	Beige			Multi-Pair	28 AWG	36 AWG	7	Braid Foil	6.35 mm	0.25 "	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	26	90 % 100 %	Splice Free
3M (TC) 3600B/20 300	Copper Tinned	Communication Computer Control	7.62 m 30.5 m	25 ft 100 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige	5 ' 10 ft	1.52 m 3.05 m	Multi-Pair	28 AWG	36 AWG	7	Braid Foil	6.1 mm	0.24 in	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	20	90 % 100 %
3M (TC) 3600B/100 200	Copper Tinned	Communication Computer Control	61 m	200 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige			Multi-Pair	28 AWG	36 AWG	7	Braid Foil			30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	100	90 % 100 %		0.44 in	11.18 mm
3M (TC) 3600B/68 100	Copper Tinned	Communication Computer Control	7.62 m	25 ft 50 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige	10 ft	3.05 m 15.24 m	Multi-Pair	28 AWG	36 AWG	7	Braid Foil	9.14 mm	0.36 "	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	68	90 % 100 %
3M (TC) 3600B/26 100	Copper Tinned	Communication Computer Control	7.62 m 30.5 m	25 ft 50 ft 100 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige	1 ft 5 '	1.52 m 15.24 m 300 mm	Multi-Pair	28 AWG	36 AWG	7	Braid Foil	6.35 mm	0.25 "	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	26	90 % 100 %
3M (TC) 3600B/20 100	Copper Tinned	Communication Computer Control	30.5 m	100 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige	1 ft 10 ft	3.05 m 300 mm	Multi-Pair	28 AWG	36 AWG	7	Braid Foil	6.1 mm	0.24 in	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	20	90 % 100 %
3M (TC) 3600B/36SF	Copper Tinned				Aluminum Copper Tinned	0.026 in	0.66 mm	Beige			Multi-Pair	28 AWG	36 AWG	7	Braid Foil			30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	36	90 % 100 %	Splice Free
3M (TC) 3600B/68 300	Copper Tinned	Communication Computer Control			Aluminum Copper Tinned	0.026 in	0.66 mm	Beige	300 ft	91.4 m	Multi-Pair	28 AWG	36 AWG	7	Braid Foil	9.14 mm	0.36 "	30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	68	90 % 100 %
3M (TC) 3600B/36 100SF	Copper Tinned	Communication Computer Control	7.62 m 30.5 m	25 ft 100 ft	Aluminum Copper Tinned	0.026 in	0.66 mm	Beige			Multi-Pair	28 AWG	36 AWG	7	Braid Foil			30 V	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	36	90 % 100 %	Splice Free			Enter Number of Feet in Order Quantity	26 37

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 191.04
		5	$ 156.30
		10	$ 121.57
		25	$ 104.20
		50	$ 97.26
		100	$ 90.31
	Digi-Spool®, Continuous Spool	1	$ 8.12
		3	$ 7.48
		5	$ 7.22
		7	$ 7.07
		10	$ 6.88
		25	$ 6.46
		50	$ 6.13
		100	$ 5.86
	Spool	1	$ 499.83
		3	$ 462.40
		5	$ 446.37
		7	$ 435.68
		10	$ 424.99
		25	$ 398.26

Description

General part information

3600B Series

36 (18 Pair Twisted) Conductor Multi-Pair Cable Beige 28 AWG Foil, Braid 100.0' (30.5m)
