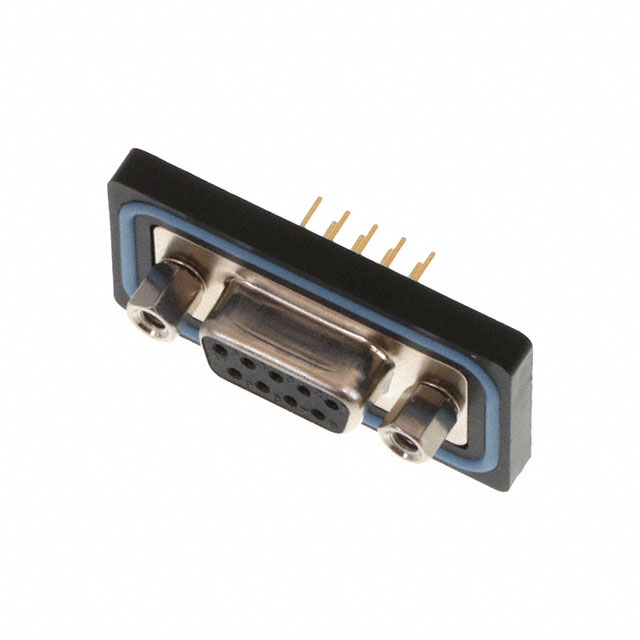

SDB-09PFFP-SL8001
ActiveAmphenol LTW
CONN D-SUB RCPT 9P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDB-09PFFP-SL8001
ActiveAmphenol LTW
CONN D-SUB RCPT 9P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDB-09PFFP-SL8001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.71 | |
| 10 | $ 7.84 | |||
| 30 | $ 7.39 | |||
| 60 | $ 7.20 | |||
| 90 | $ 7.01 | |||
| 240 | $ 6.25 | |||
| 450 | $ 5.87 | |||
| 960 | $ 5.19 | |||
Description
General part information
SDB-09PFFP Series
9 Position D-Sub Receptacle, Female Sockets Connector
