SDB-09PFFP-SR8001

Active

Amphenol LTW

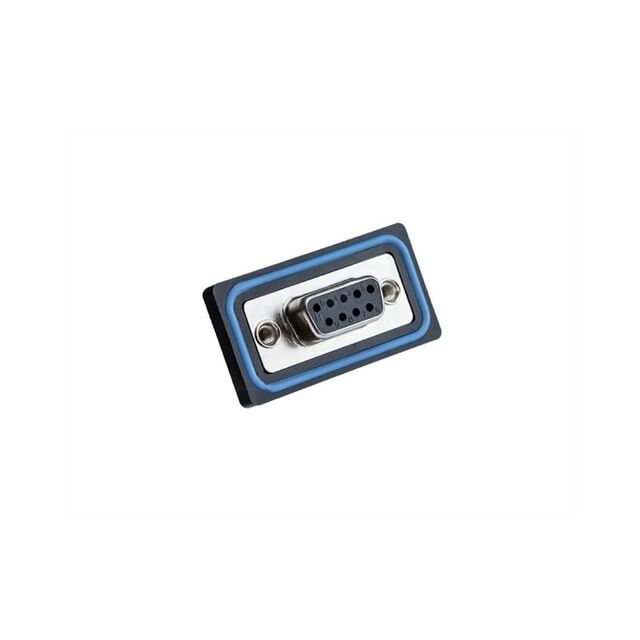

CONN D-SUB RCPT 9POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB RCPT 9POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-09PFFP-SR8001

Backset Spacing	0.276 in
Backset Spacing	7 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Ingress Protection	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Features	Backset Spacing	Backset Spacing	Contact Material	Dielectric Material	Termination	Connector Style	Flange Feature	Shell Material, Finish	Contact Finish	Contact Type	Number of Positions	Connector Type	Current Rating (Amps)	Mounting Type
Amphenol LTW SDB-09PFFP-SR8001	DE E	1	Black	IP68 - Dust Tight Waterproof	2	-40 °C	105 ░C	Shielded	0.276 in	7 mm	Copper Alloy	Polybutylene Terephthalate (PBT)	Solder	D-Sub	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Gold	Signal	9	Receptacle Female Sockets	5 A	Panel Mount Right Angle Through Hole
Amphenol LTW SDB-09PFFP-SL8001	DE E	1	Black	IP68 - Dust Tight Waterproof	2	-40 °C	105 ░C	Shielded			Copper Alloy	Polybutylene Terephthalate (PBT)	Solder	D-Sub	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Gold	Signal	9	Receptacle Female Sockets	5 A	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 11.21

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
