MP2-H030-51P1-S-KR

Active

CONN HEADER FUTUREBUS+ 30POS PCB

Search across all available documentation for this part.

Active

CONN HEADER FUTUREBUS+ 30POS PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	840	$ 4.48

General part information

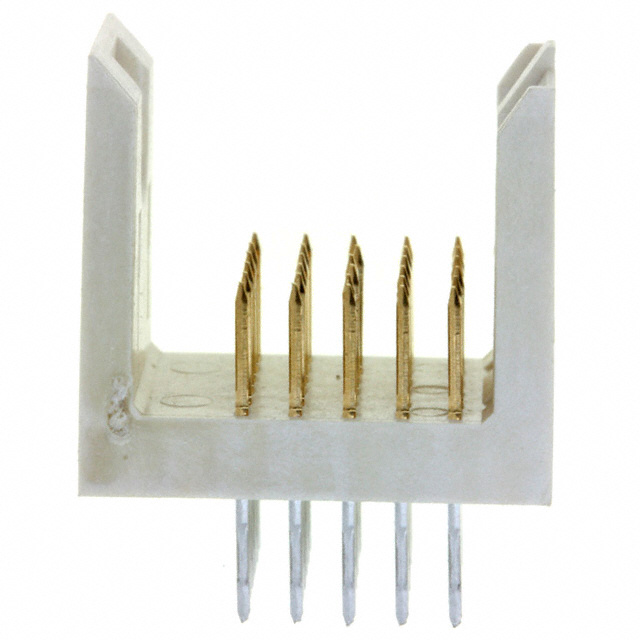

30 Connector Header, Male Pins Through Hole Beige Futurebus+®

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MP2-H030-51P1-S-KR	MP2-H030 Series

Color	Beige	Beige
Connector Style	Futurebus+®	Futurebus+®
Connector Type	Header, Male Pins	Header, Male Pins
Connector Usage	Backplane	Backplane
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.076 - 0.76 Ám
Contact Finish Thickness	30 Áin	3 - 30 Áin
Current Rating (Amps)	1.5 A	1.5 A
Features	Mating Guide, Board Guide	Mating Guide, Board Guide
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	30	30
Number of Positions Loaded	All	All
Number of Rows	5	5
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Termination	Press-Fit	Solder, Press-Fit

CONN HEADER FUTUREBUS+ 30POS PCB

Part	Contact Finish	Connector Style	Color	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Current Rating (Amps)	Mounting Type	Pitch [x]	Pitch [x]	Connector Usage	Number of Positions	Number of Positions Loaded	Material Flammability Rating	Number of Rows	Features	Operating Temperature [Min]	Operating Temperature [Max]	Termination
3M MP2-H030-52S1-S-LR	Gold	Futurebus+®	Beige	3 Áin	0.076 Ám	Header, Male Pins	1.5 A	Through Hole	0.079 in	2 mm	Backplane	30	All	UL94 V-0	5	Board Guide, Mating Guide	-55 °C	125 °C	Solder
3M MP2-H030-51P1-S-KR	Gold	Futurebus+®	Beige	30 Áin	0.76 Ám	Header, Male Pins	1.5 A	Through Hole	0.079 in	2 mm	Backplane	30	All	UL94 V-0	5	Board Guide, Mating Guide	-55 °C	125 °C	Press-Fit
3M MP2-H030-51S1-S-LR	Gold	Futurebus+®	Beige	3 Áin	0.076 Ám	Header, Male Pins	1.5 A	Through Hole	0.079 in	2 mm	Backplane	30	All	UL94 V-0	5	Board Guide, Mating Guide	-55 °C	125 °C	Solder
3M MP2-H030-54P1-S-TR30	Gold	Futurebus+®	Beige	3 Áin	0.076 Ám	Header, Male Pins	1.5 A	Through Hole	0.079 in	2 mm	Backplane	30	All	UL94 V-0	5	Board Guide, Mating Guide	-55 °C	125 °C	Press-Fit
