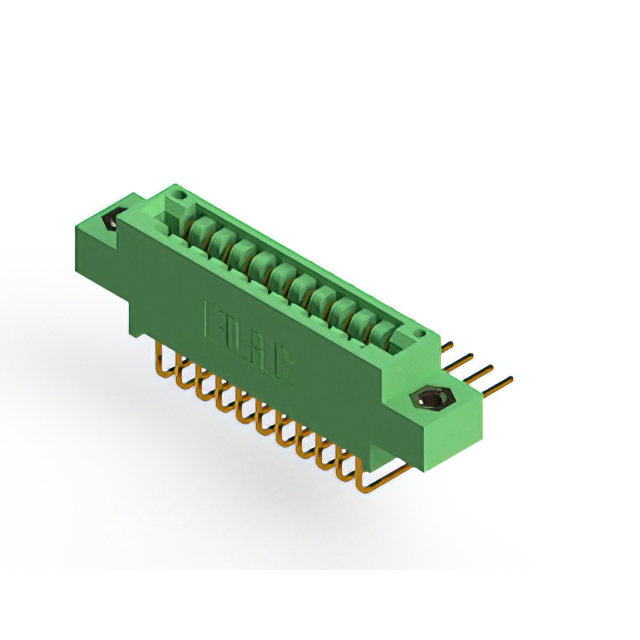

846-022-559-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-022-559-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 22POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-022-559-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-022 Series
...
| Part | Contact Finish | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Material | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Read Out | Number of Rows | Number of Positions | Contact Type | Card Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 11 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | Dual | 2 | 22 positions | Cantilever | Non Specified - Dual Edge | ||
EDAC Inc. | Gold | 11 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | Dual | 2 | 22 positions | Cantilever | Non Specified - Dual Edge | ||
EDAC Inc. | Gold | 11 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 4-40 Threaded Insert Top Mount Opening | 2 | Dual | 2 | 22 positions | Cantilever | Non Specified - Dual Edge | ||||
EDAC Inc. | Gold | 22 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Wire Wrap | 1 | Single | 1 | 22 positions | Cantilever | Non Specified - Single Edge | |||||
EDAC Inc. | Gold | 11 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 2 | Dual | 2 | 22 positions | Cantilever | Non Specified - Dual Edge | ||
EDAC Inc. | Gold | 22 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 1 | Single | 1 | 22 positions | Cantilever | Non Specified - Single Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 22 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | Flush Mount M3 Threaded Insert Top Opening | 1 | Single | 1 | 22 positions | Cantilever | Non Specified - Single Edge | ||||
EDAC Inc. | Gold | 11 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 2 | Dual | 2 | 22 positions | Cantilever | Non Specified - Dual Edge | |||||
EDAC Inc. | Gold | 22 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Wire Wrap | 1 | Single | 1 | 22 positions | Cantilever | Non Specified - Single Edge | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 11 | 125 °C | -40 °C | 0.125 in | 3.18 mm | Copper Alloy | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Female | Green | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Dual | 2 | 22 positions | Cantilever | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-022 Series
22 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
