846-022-541-602

Active

EDAC Inc.

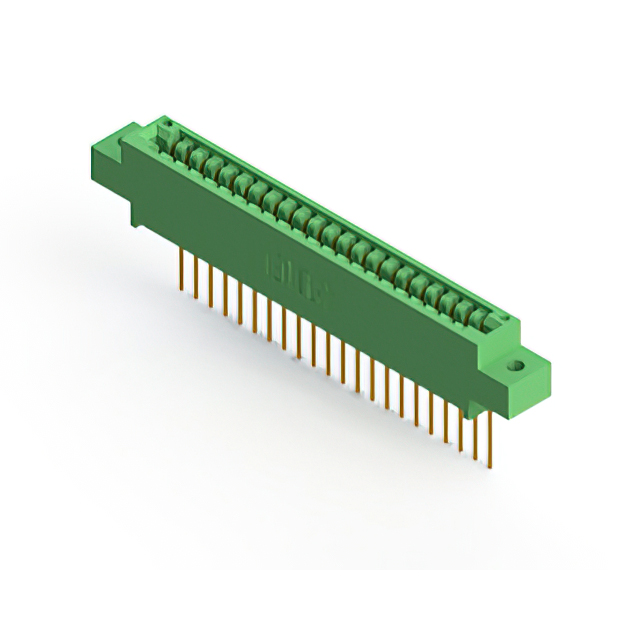

CONN EDGE SGL FMALE 22POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-022-541-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 22POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-022-541-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	22
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

846-022 Series

...

Part	Contact Finish	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Material	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Gender	Color	Termination	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Read Out	Number of Rows	Number of Positions	Contact Type	Card Type	Flange Feature	Flange Feature
EDAC Inc. 846-022-558-203	Gold	11	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder	0.116 in	Floating Bobbin Flush Mount	2.95 mm	2	Dual	2	22 positions	Cantilever	Non Specified - Dual Edge
EDAC Inc. 846-022-526-202	Gold	11	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	2	Dual	2	22 positions	Cantilever	Non Specified - Dual Edge
EDAC Inc. 846-022-559-808	Gold	11	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder		4-40 Threaded Insert Top Mount Opening		2	Dual	2	22 positions	Cantilever	Non Specified - Dual Edge
EDAC Inc. 846-022-541-101	Gold	22	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Wire Wrap				1	Single	1	22 positions	Cantilever	Non Specified - Single Edge
EDAC Inc. 846-022-558-212	Gold	11	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	2	Dual	2	22 positions	Cantilever	Non Specified - Dual Edge
EDAC Inc. 846-022-526-602	Gold	22	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder				1	Single	1	22 positions	Cantilever	Non Specified - Single Edge	3.25 mm	0.128 in
EDAC Inc. 846-022-526-107	Gold	22	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder		Flush Mount M3 Threaded Insert Top Opening		1	Single	1	22 positions	Cantilever	Non Specified - Single Edge
EDAC Inc. 846-022-559-201	Gold	11	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder				2	Dual	2	22 positions	Cantilever	Non Specified - Dual Edge
EDAC Inc. 846-022-541-602	Gold	22	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Wire Wrap				1	Single	1	22 positions	Cantilever	Non Specified - Single Edge	3.25 mm	0.128 in
EDAC Inc. 846-022-526-208	Gold	11	125 °C	-40 °C	0.125 in	3.18 mm	Copper Alloy	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	Female	Green	Solder		4-40 Flush Mount Threaded Insert Top Opening		2	Dual	2	22 positions	Cantilever	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 41.34

Description

General part information

846-022 Series

22 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
