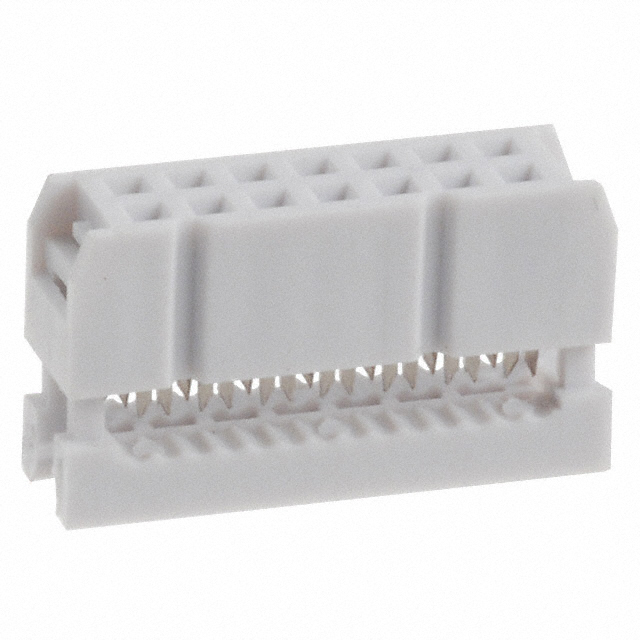

AWP 14-8240-T

Active

Assmann WSW Components

CONN IDC CONNECTOR F 14 POS 2.54MM IDT RA CABLE MOUNT

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN IDC CONNECTOR F 14 POS 2.54MM IDT RA CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish	Features	Mounting Type	Contact Type	Wire Type	Color	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Rows	Connector Type	Number of Positions	Contact Finish Thickness
Assmann WSW Components AWP14-7240-T-R	IDC	Gold	Feed Through Polarizing Key	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14	Flash
Assmann WSW Components AWP14-8240-T-R	IDC	Gold	Feed Through	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP 14-7540-T	IDC	Tin	Feed Through Polarizing Key	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP14-7241-T-R	IDC	Gold	Feed Through Polarizing Key Strain Relief	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14	Flash
Assmann WSW Components AWP 14-8540-T	IDC	Tin	Feed Through	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP 14-8240-T	IDC	Gold	Feed Through	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP14-8541-T-R	IDC	Tin	Feed Through Strain Relief	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Socket Connector IDC Gold
