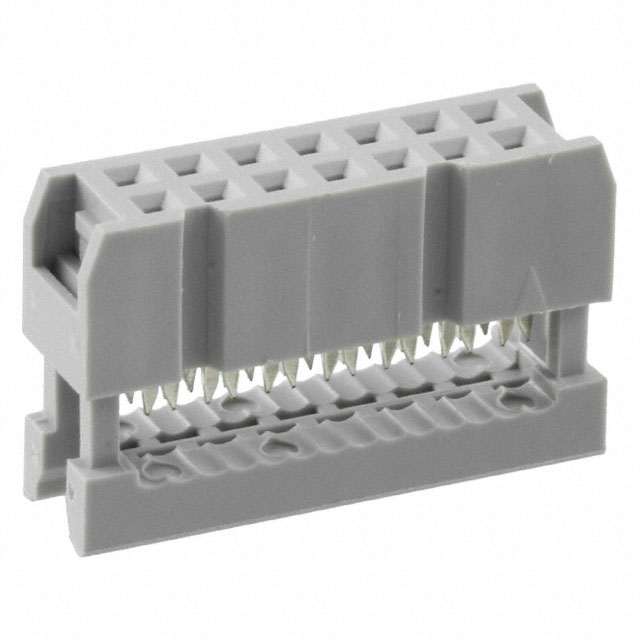

AWP 14-8540-T

Active

Assmann WSW Components

CONN SOCKET 14POS IDC TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET 14POS IDC TIN

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish	Features	Mounting Type	Contact Type	Wire Type	Color	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Rows	Connector Type	Number of Positions	Contact Finish Thickness
Assmann WSW Components AWP14-7240-T-R	IDC	Gold	Feed Through Polarizing Key	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14	Flash
Assmann WSW Components AWP14-8240-T-R	IDC	Gold	Feed Through	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP 14-7540-T	IDC	Tin	Feed Through Polarizing Key	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP14-7241-T-R	IDC	Gold	Feed Through Polarizing Key Strain Relief	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14	Flash
Assmann WSW Components AWP 14-8540-T	IDC	Tin	Feed Through	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP 14-8240-T	IDC	Gold	Feed Through	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14
Assmann WSW Components AWP14-8541-T-R	IDC	Tin	Feed Through Strain Relief	Free Hanging (In-Line)	Female Socket	Ribbon Cable	Gray	2.54 mm	0.1 in	0.1 in	2.54 mm	2	Socket	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Socket Connector IDC Tin
